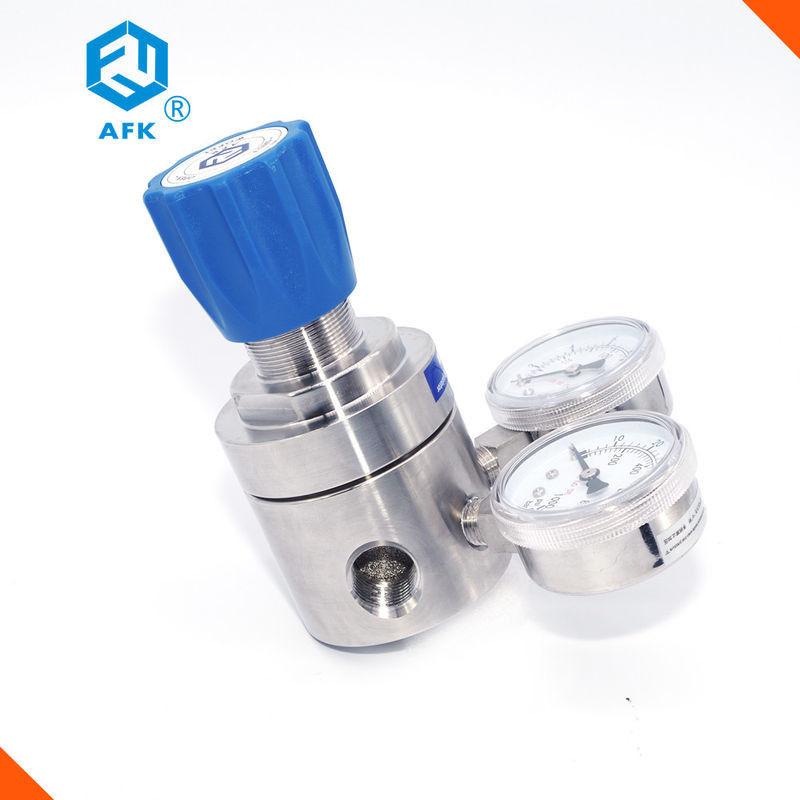

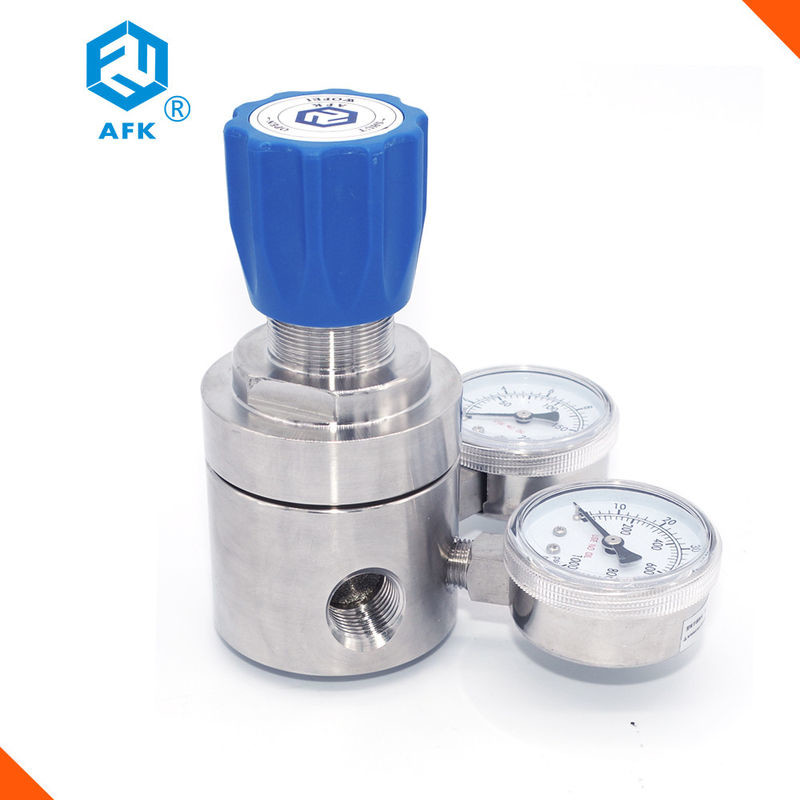

Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure

  • Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure
  • Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure
  • Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure
  • Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure
  • Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure
Place of Origin China
Brand Name AFK
Certification CE RoSH
Model Number R13
Minimum Order Quantity 1
Price Negotiable
Packaging Details Export packing
Delivery Time 10000 Set/Sets per Week
Payment Terms L/C, D/A, D/P, T/T, Western Union

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materail Stailess Steel Model Number R13
Structure Diahpragm Max Inlet Pressure 500, 1500 Psig
Outlet Pressure Ran 0~15, 0~25, 0~75, 0~125 Psig Working Temperature -40° F ~+165° F(-40°C+74°C)
High Light

compressed air check valve

,

air pressure check valve
Leave a Message
Product Description

Product Description

Product Application


R13 Serie stainless steel pressure reducers, single-stage diaphragms pressure reducing construction, stainless steel diaphragms pressure transmission,
stable output pressure, applied in mass flow gas system for pure gases, standard gases and corrosive gases etc.

Main Features
1) Single -stage pressure-reducing Structure.
2) Metal-to-metal diaphragm seal.
3) Body Thread : input & output connection 3/4" NPT ( F )
4) Gauge and safety valve connection: 1/4" NPT ( F )
5) Filter element installed internally
6) Panel mountable or wall mounting available
7)Easy to clean internal structure
Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure 0

Material List


1) Max. Inlet Pressure: 500, 1500 psi

2) Outlet Pressure: 0~15, 0~25, 0~75, 0~125 Psi

3) Proof Pressure: 1.5 times of maximum rated pressure

4) Working Temperature: -40°F-+165°F(-40°C-+74°C)

5) Leakage Rate: 2*10-8 atm cc/sec He

6) CV: 1.8

7) Body Thread: 1/4" NPT ( F )



Detailed Images



Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure 1

Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure 2



Certifications

Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure 3



Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure 4

Packing & Delivery



Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure 5Inlet 500psi Low Pressure Argon Gas Pressure Regulator R13 Diahpragm Structure 6



FAQ



Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: No, we not offer the sample for free charge and also not pay the cost of freight.

Q: What is your payment ?
A: T/T , PayPal , Western Union
