316L Digital Hydraulic Pressure Gauge , AFK Gas CO2 Pressure Regulator Long Lifespan

Product Details

Place of Origin: Guangdong,China

Brand Name: AFK

Certification: CE

Model Number: R31

Payment & Shipping Terms

Minimum Order Quantity: 1-99 pieces

Price: Negotiable

Packaging Details: white box+Export packing

Delivery Time: 5-8 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 3000 pieces per week

Get Best Price
Contact Now
Specifications
Highlight:

flow control valve

,

gas cylinder regulator

Applicable Gas:
Pure Gas, Standard Gas, Corrosive Gas
Maximum Inlet Pressure:
500,3000psig
Outlet Pressure Ranges:
0~25, 0~50, 0~50,0~250,0~500psig
Cv Vale:
0.06
Weight:
2.5Kg
Application:
Industry Equipment
Applicable Gas:
Pure Gas, Standard Gas, Corrosive Gas
Maximum Inlet Pressure:
500,3000psig
Outlet Pressure Ranges:
0~25, 0~50, 0~50,0~250,0~500psig
Cv Vale:
0.06
Weight:
2.5Kg
Application:
Industry Equipment
Description

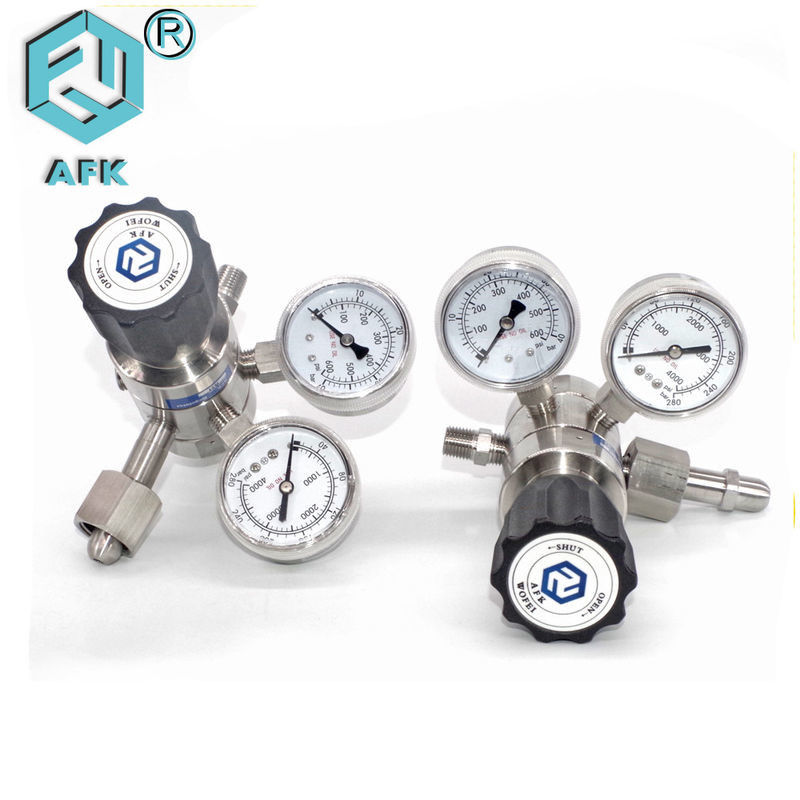

316L Digital Hydraulic Pressure Gauge , AFK Gas CO2 Pressure Regulator Long Lifespan

High Quality Double Stage AFK Gas stainless steel CO2 Pressure regulator



Product Desription



R31 series stainless steel pressure regulator, double stage diaphragm reducing structure, stable input pressure, suitable for high purity gas, standard gas, corrosive gas etc.



Typical Applications:



Labotary

Gas Chromatography

Gas laser

Gas bus-bar

petro-chemical industry

Test equipment



Design Feature:



Single-stage pressure reducer

Maternal and diaphragm use hard seal form

Body NPT:inlet and outlet interface 1/4''NPT(F)

The internal structure easy to purge

Can set filters

Can use a panel Intallation

Inlet form:Needle valve, membrane valve



Technical Parameter:



Maximum Inlet Pressure

500,3000psig

Outlet Pressure Ranges

0~25, 0~50, 0~50,0~250,0~500psig

Safety test pressure

1.5 times maximum inlet pressure

Operating Temperature

-40°F to +165°F / -40°c to 74°c

Leakage Rate Against Atmosphere

2*10-8atm cc/sec he

Cv value

0.06



Material:



Body

316L.Brass

Bonnet

316L. Brass

Diafragm

316L

Strainer

316L(10 μm)

Seat

PCTFE,PTEE, Vespel

Spring

316L

Plunger valve core

316L





Once you want to send us the inquirr,pls tell us the following:



1. Media (sevice as)? co2 or?

2. atual inlet pressure and outlet pressure?

3. Flow rate?

4. Inlet connection and out connection?

5. Material or ss316?

6. Quantity?
