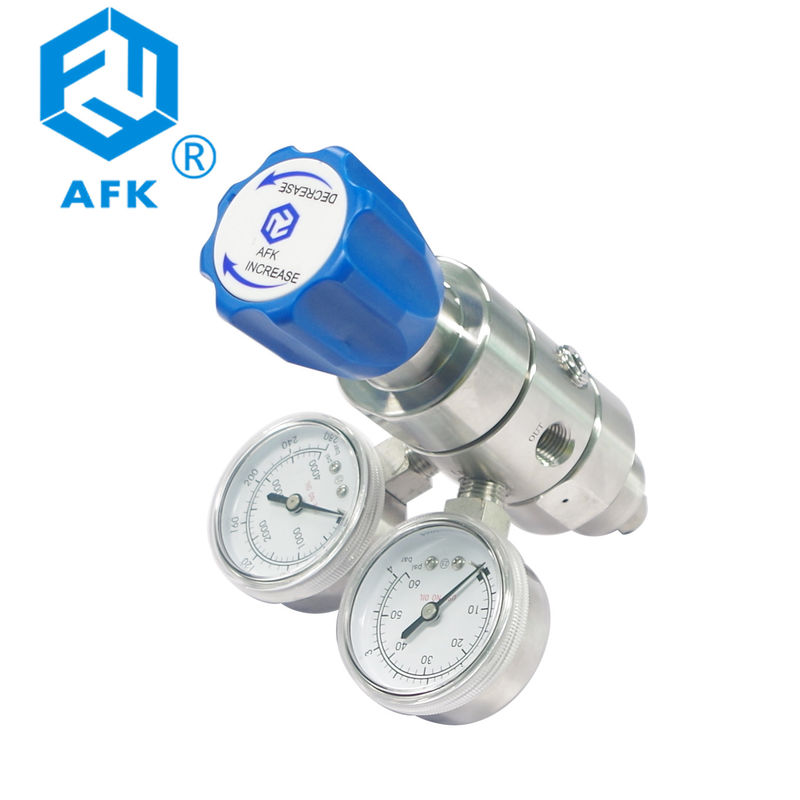

Acetylene Butane 500psi 316L Stainless Steel Pressure Regulator

  • Acetylene Butane 500psi 316L Stainless Steel Pressure Regulator
  • Acetylene Butane 500psi 316L Stainless Steel Pressure Regulator
  • Acetylene Butane 500psi 316L Stainless Steel Pressure Regulator
Place of Origin Guangdong, China
Brand Name AFK
Certification CE/RoHS
Model Number R31
Minimum Order Quantity 1 Piece
Price Negotiable
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000 Piece/pieces per Ddy

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Maximum Inlet Pressure 500,3000psi Outlet Pressure Ranges 0~25, 0~50, 0~50,0~250,0~500psig
Safety Test Pressure 1.5 Times Maximum Inlet Pressure Operating Temperature -40°F To +165°F / -40°c To 74°c
Leakage Rate Against Atmosphere 2*10-8atm Cc/sec He
High Light

500psi Stainless Steel Pressure Regulator

,

316L Stainless Steel Pressure Regulator

,

Acetylene Butane Gas Pressure Regulator
Leave a Message
Product Description



Design Features:



  • Five hole designof the body
  • Double-stage pressure-reducing structure
  • Metal-to-metal diaphragm seal
  • Body thread:input and output connection
  • 1/4”NPT(F)
  • Easy to clean internal structure
  • Filter element installed internally
  • Panel mounting and wall mounting available
  • Optional outlet: needle valve, diaphragm valve





Typical Applications:



  • Labotary
  • Gas Chromatography
  • Gas laser
  • Gas bus-bar
  • petro-chemical industry
  • Test equipment



Material:





Body
316L,Brass
Bonnet
316L. Brass
Diaphragm
316L
Strainer
316L(10mm)
Seat
PCTFE,PTEE,Vespel
Spring
316L
Plunger valve core
316L









Acetylene Butane 500psi 316L Stainless Steel Pressure Regulator 0

Acetylene Butane 500psi 316L Stainless Steel Pressure Regulator 1



Certifications:

Acetylene Butane 500psi 316L Stainless Steel Pressure Regulator 2
