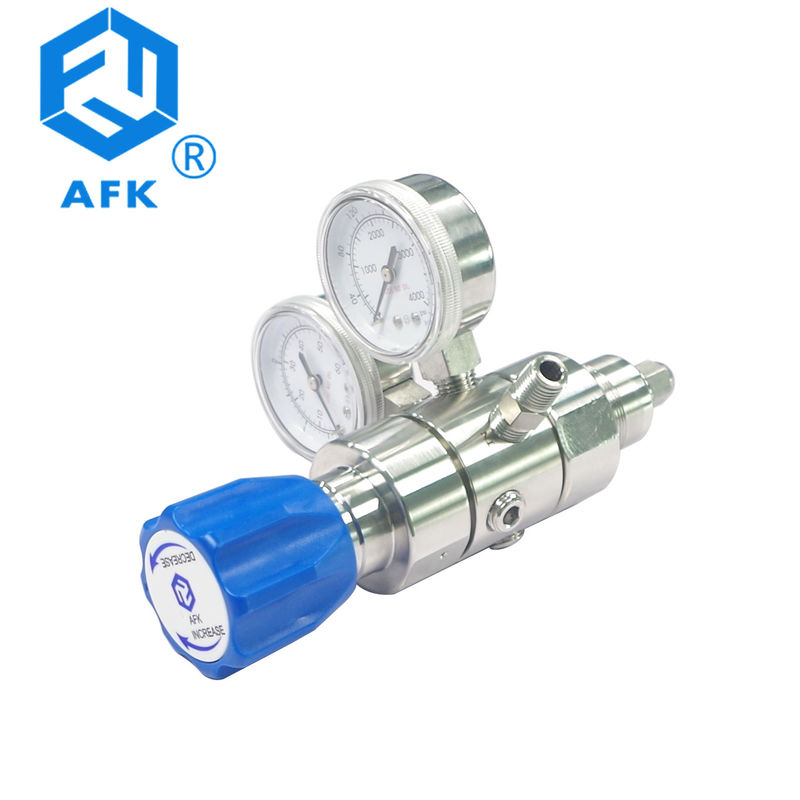

Double Stage ss316L 3000Psi Gas Pressure Regulator 1/4" NPT
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Maximum Inlet Pressure | 500,3000psig | Outlet Pressure Ranges | 0~25, 0~50, 0~50,0~250,0~500psig |
|---|---|---|---|
| Safety Test Pressure | 1.5 Times Maximum Inlet Pressure | Temperature | -10~+74°C (-40~+165°F) |
| Structure | Diaphragm | Outlet Connection | 1/4"NPT F, 1/4"NPT M, 1/4" Ferrule, Hose Barb, Others |
| High Light | Ss316L Gas Pressure Regulator,3000Psi Gas Pressure Regulator,1/4" NPT Double Stage Gas Regulator |
||
Product Description
Design Features:
- Five hole designof the body
- Double-stage pressure-reducing structure
- Metal-to-metal diaphragm seal
- Body thread:input and output connection
- 1/4”NPT(F)
- Easy to clean internal structure
- Filter element installed internally
- Panel mounting and wall mounting available
- Optional outlet: needle valve, diaphragm valve
Typical Applications:
- Labotary
- Gas Chromatography
- Gas laser
- Gas bus-bar
- petro-chemical industry
- Test equipment
Certifications:
FAQ:
Q1. What products can you provide?
Re: High stainless steel pressure regulator, cylinder gas regulator, ball valve, needle valve, compression fittings(connections).
Q2. Can you make the products based on our requests, such as connection, thread, pressure and so on?
Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements. Take a pressure regualtor for example, we can set the range of pressure gauge according actual working pressure, if the regulator is connected to a gas cylinder, we can add an adaptor such as CGA320 or CGA580 to connect the regulator with the cylinder valve.
Q3. What about the quality and price?
Re: Quality is very good. Price is not low but pretty reasonable at this quality level.
Q4. Can you provide samples to test? For free?
Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.
Q5. Can you operate OEM orders?
Re: Yes, OEM is supported though we also have our own brand named AFK.
Q6. What payment methods for chose?
Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 30%T/T, Western Union, L/C as deposit, and 70% balance paid before shipment.
Q7. How about the lead time?
Re: Usually, delivery time is 5-7 working days for sample, 10-15 working days for mass production.
Q8. How will you ship the goods?
Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
