Argon Nitrogen SS316L Gas Pressure Regulator Valve 3000psi

Product Details

Place of Origin: Guangdong, China

Brand Name: AFK

Certification: CE/RoHS

Model Number: R31

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiable

Delivery Time: 5-8 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 3000 Piece/pieces per Ddy

Get Best Price
Contact Now
Specifications
Highlight:

SS316L Gas Pressure Regulator Valve

,

3000psi Gas Pressure Regulator Valve

,

Argon Nitrogen SS Pressure Regulator

Screw Thread:
Requirement Thread
Input Pressure:
500 3000psi
Warranty:
1 Year
Safety Test Pressure:
1.5 Times Maximum Inlet Pressure
Type:
Two-stage
Operating Temperature:
-40°F To +165°F / -40°c To 74°c
Screw Thread:
Requirement Thread
Input Pressure:
500 3000psi
Warranty:
1 Year
Safety Test Pressure:
1.5 Times Maximum Inlet Pressure
Type:
Two-stage
Operating Temperature:
-40°F To +165°F / -40°c To 74°c
Description
Argon Nitrogen SS316L Gas Pressure Regulator Valve 3000psi

Poduct Descriptionr

R31 series stainless steel pressure regulator, double stage diaphragm reducing structure, stable input pressure, suitable for high purity gas, standard gas, corrosive gas etc.





Design Features:



  • Five hole designof the body
  • Double-stage pressure-reducing structure
  • Metal-to-metal diaphragm seal
  • Body thread:input and output connection
  • 1/4”NPT(F)
  • Easy to clean internal structure
  • Filter element installed internally
  • Panel mounting and wall mounting available
  • Optional outlet: needle valve, diaphragm valve



Technical Data:



  • Maximum inlet pressure: 3000, 500psig
  • output pressure:0~25, 0~50, 0~100, 0~250psig
  • safety testing pressure: 1.5 times of maximum inlet pressure
  • working temperature: -40~+165 deg F(-40~+74 deg C)
  • leakage rate: 2×10-8 atm cc/sec He
  • CV value=0.06



Material:



  • body: 316L, Brass
  • bonnet: 316L, Brass
  • diaphragm: 316L
  • strainer: 316L(10μm)
  • seat: PCTFE, PTFE, Vespel
  • spring: 316L
  • stem: 316L



Application:



  • laboratory
  • gas chromatography
  • gas lasers
  • gas bus-bar
  • petrochemical industry
  • testing equipment

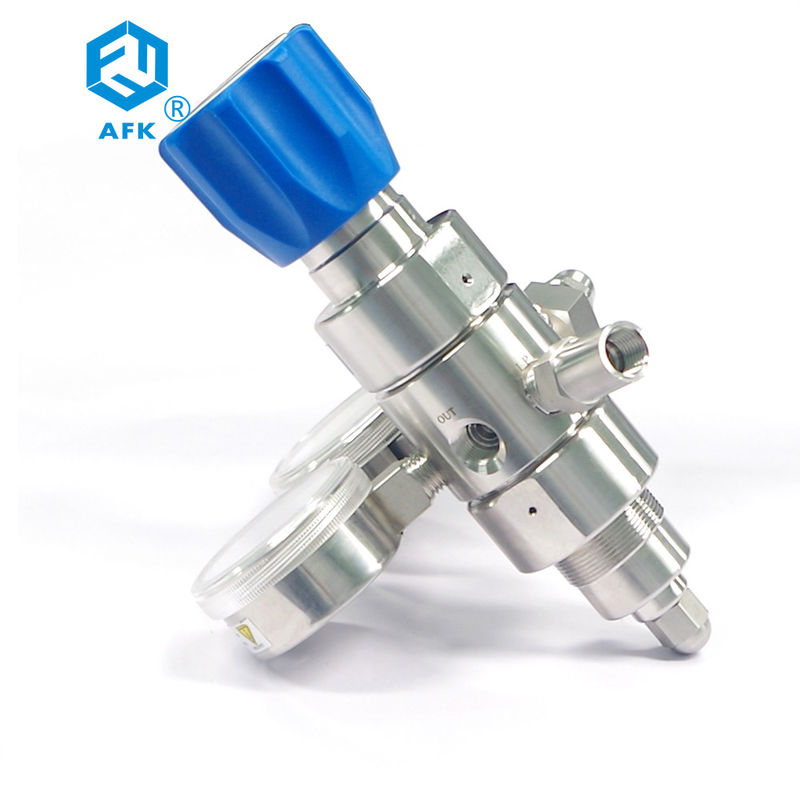

Argon Nitrogen SS316L Gas Pressure Regulator Valve 3000psi 0
