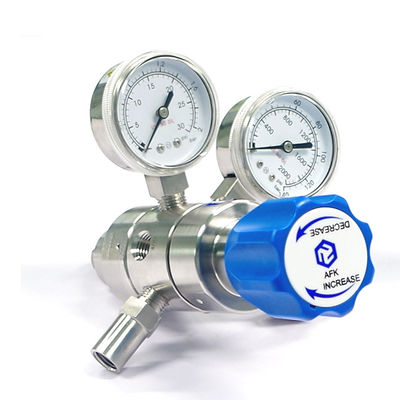

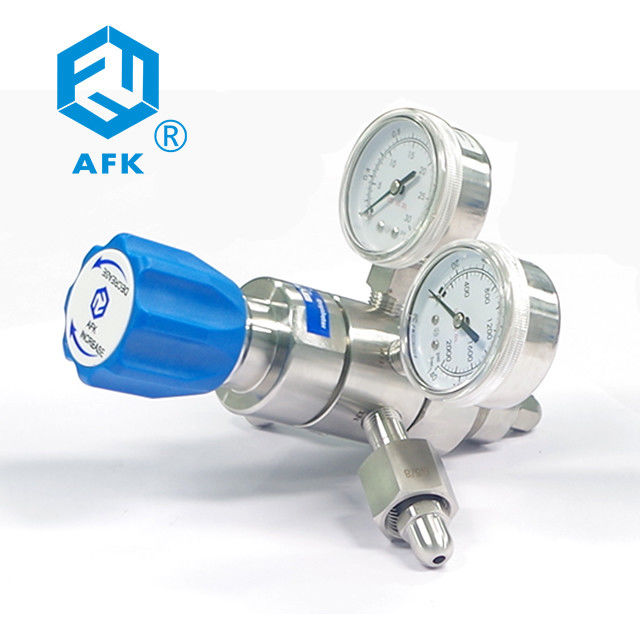

Stainless Steel 316L 3000psi Nitrogen Gas Pressure Regulator 1/4" NPT

  • Stainless Steel 316L 3000psi Nitrogen Gas Pressure Regulator 1/4" NPT
  • Stainless Steel 316L 3000psi Nitrogen Gas Pressure Regulator 1/4" NPT
  • Stainless Steel 316L 3000psi Nitrogen Gas Pressure Regulator 1/4" NPT
Place of Origin Guangdong, China
Brand Name AFK
Certification CE/RoHS
Model Number R31
Minimum Order Quantity 1 Piece
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000 Piece/pieces per Ddy

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 316L Maximum Inlet Pre 3000, 500PSI
Warranty 1 Year Weight 1.4 Kg
Type Two-stage Color Silvery White
Suitable Gas Oxygen/lpg/air/propane/Acetylene/Argon/nitrogen
High Light

3000psi Nitrogen Gas Pressure Regulator

,

316L Nitrogen Gas Pressure Regulator

,

1/4" NPT SS Pressure Regulator
Leave a Message
Product Description

Product Description

R31 series stainless steel pressure regulator, double stage diaphragm reducing structure, stable input pressure, suitable for high purity gas, standard gas, corrosive gas etc.

​

Design Features:

  • Five hole designof the body
  • Double-stage pressure-reducing structure
  • Metal-to-metal diaphragm seal
  • Body thread:input and output connection
  • 1/4" NPT(F)
  • Easy to clean internal structure
  • Filter element installed internally
  • Panel mounting and wall mounting available
  • Optional outlet: needle valve, diaphragm valve
  •
  • Stainless Steel 316L 3000psi Nitrogen Gas Pressure Regulator 1/4" NPT 0Stainless Steel 316L 3000psi Nitrogen Gas Pressure Regulator 1/4" NPT 1

Technical Data:

  • Maximum inlet pressure: 3000, 500psig
  • output pressure:0~25, 0~50, 0~100, 0~250psig
  • safety testing pressure: 1.5 times of maximum inlet pressure
  • working temperature: -40~+165 deg F(-40~+74 deg C)
  • leakage rate: 2×10-8 atm cc/sec He
  • CV value=0.06

Application:

Stainless Steel 316L 3000psi Nitrogen Gas Pressure Regulator 1/4" NPT 2

  • laboratory
  • gas chromatography
  • gas lasers
  • gas bus-bar
  • petrochemical industry
  • testing equipment

Material:

  • body: 316L, Brass
  • bonnet: 316L, Brass
  • diaphragm: 316L
  • strainer: 316L(10μm)
  • seat: PCTFE, PTFE, Vespel
  • spring: 316L
  • stem: 316L



Certifications:

Stainless Steel 316L 3000psi Nitrogen Gas Pressure Regulator 1/4" NPT 3
