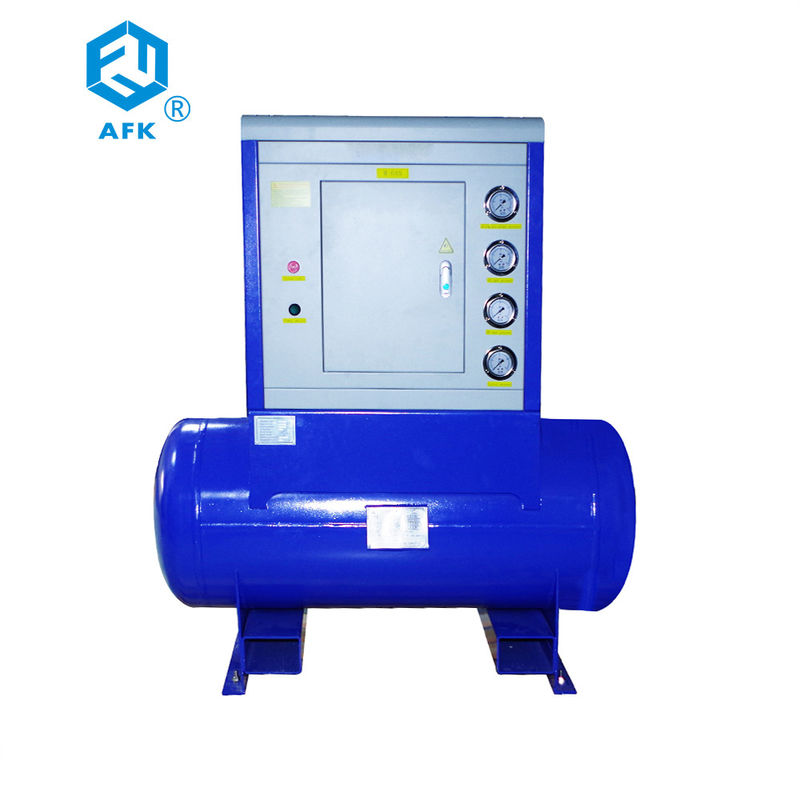

220VAC SUS304 Horizontal Gas Mixing Proportioner Two Element

Two Element Gas Proportioner

Input Media: N2+O2 Inlet pressure: 0.6-2.5Mpa

Control Pressure: 0.4-2.2Mpa

Outlet pressure: 0.4-1.8Mpa (adjustable)

The Ratio of range: 0-3%

Precision: ±0.1%

Outlet flow: ≤60Nm3/h

Voltage: AC220v 50/60Hz ≤6A

Working temperature: -25-50℃

Weight: about 200KGS

Design Features

This series of mixed gas proportioning cabinets are designed for large, medium and small flow, high-precision.

Designed with dual or multi-element gas ratio. Input and output pressure can be self adjustment and setting can realize automatic control.

The digital display of the proportioning content is more intuitive and the proportioning accuracy is higher. The proportioning cabinet has a mixing accuracy of 0.5~1.5%, and the output is stable, etc. Can be widely used in railways, ships, chemicals, machinery manufacturing, etc.

Class gas shielded welding and laser cutting and other occasions.

Structural feactures

1. Designed to provide large flow and high-precision two-element gas ratio

2. Set the alarm range of inlet pressure and outlet pressure

3. The output pressure adjustment adopts a digital display switch, which is convenient to adjust and high precision

4. The proportioning mechanism is a pure mechanical part, which is safe and reliable to use

5. Fully enclosed metal shell, strong anti-interference

6. The electrical components are all products of well-known manufacturers, which are safe and reliable to use

7. Rated voltage: 220VAC

8. Dimension: 1130mmx 490mmx 1336mm
