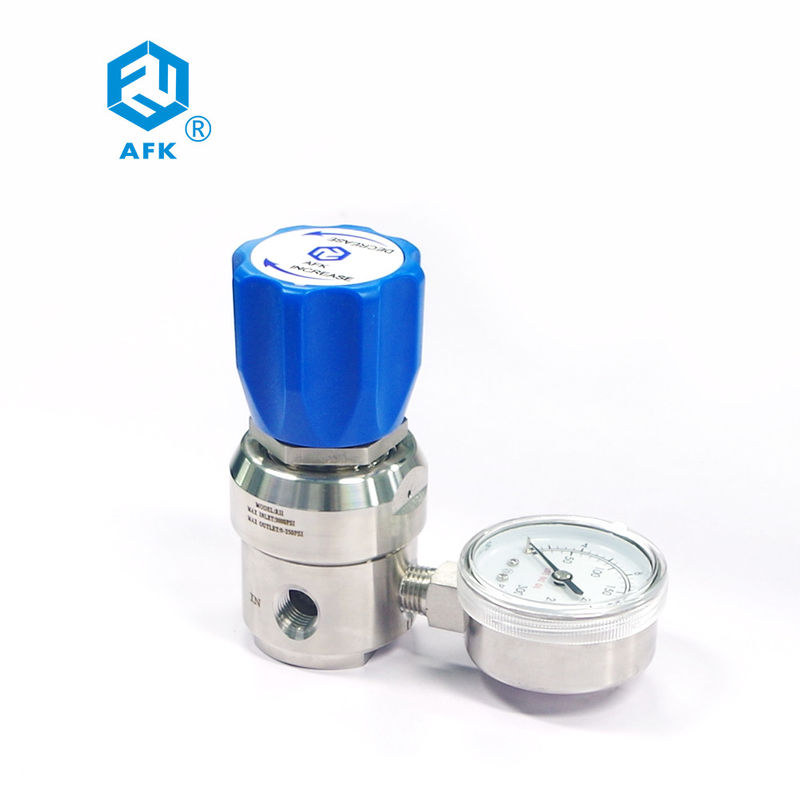

PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted

  • PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted
  • PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted
  • PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted
  • PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted
  • PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted
  • PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted
Place of Origin China
Brand Name AFK
Certification PCE
Model Number R11
Minimum Order Quantity 1
Price Negotiable
Packaging Details WOODEN,CARTON
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Ss316L, Nickel Plated Brass Inlet Pressure 3000psi
Outlet Pressure 0~25, 0~50, 0~50,0~250,0~500psig Inlet Connection CGA, BS341, DIN477
Outlet Connection OD, Male, Female CV 0.08
High Light

1/4" Npt Single Gauge Pressure Reducer

,

PCE Single Gauge Pressure Reducer

,

Braided SS Wall Mounted Pressure Regulator
Leave a Message
Product Description

R11 Series stainless steel pressure regulator is Single-stage diaphragm, vacuum structure stainless diaphragm output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive gas etc..



Product Parameenters:



Maximum Inlet Pressure 500,3000psig
Outlet Pressure Ranges 0~25, 0~50, 0~50,0~250,0~500psig
Safety test pressure 1.5 times maximum inlet pressure
Operating Temperature -40°F to 165°F / -40°c to 74°c
Leakage Rate AgainstAtmosphere 2*10-8atm cc/sec he
Cv value 0.08



Materials:



Body 316L,Brass
Bonnet 316L. Brass
Diafragm 316L
strainer 316L(10mm)
Seat PCTFE,PTEE,Vespel
Spring 316L
Plunger valve core 316L



Application :

1.Laboratory

2.Gas Chromatography

3.Gas Lasers

4.Gas Bus-bar

5.Petrochemical Industry

6.Testing Equipment

Design Feature:

Single-stage pressure reducer

Maternal and diaphragm use hard seal form

Body NPT:1/4”NPT(F)

The internal structure easy to purge

Can set filters

Can use a panel or wall mounting



PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted 0



Flow Data

PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted 1

PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted 2

Ordering Information



R11 L B B D G 00 02 P
Item Body Material Body Hole Inlet Pressure

Outlet

Pressure

 Pressure Guage

Inlet

size

Outlet

size

 Mark
R11 L:316 A D:3000 psi F:0-500psig G:Mpa guage

00:1/4″NPT(F)

 00:1/4″NPT(F) P:Panel mounting
  B:Brass B E:2200 psi G:0-250psig P:Psig/Bar Guage 01:1/4″NPT(M) 01:1/4″NPT(M) R:With relief valve
    D F:500 psi K:0-50pisg W:No guage 23:CGGA330 10:1/8″ OD N:Needle calve
    G   L:0-25psig   24:CGGA350 11:1/4″ OD D:Diaphregm valve
    J       27:CGGA580 12:3/8″ OD
    M       28:CGGA660 15:6mm OD
            30:CGGA590 16:8mm OD
            52:G5/8″-RH(F)
            63:W21.8-14H(F)
            64:W21.8-14LH(F)




 PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted 3PCE 1/4" Npt Single Gauge Pressure Reducer Braided SS Wall Mounted 4
