Product Details
Place of Origin: China
Brand Name: AKF
Certification: PCE
Model Number: R11
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: WOODEN,CARTON
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100PC
Material: |
Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L |
Connection: |
Female |
Size: |
1/4" OD X 1/4 Male NPT |
Color: |
Silver |
Thread: |
NPT |
Medium: |
Gas |
Warranty: |
1 Year |
Material: |
Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L |
Connection: |
Female |
Size: |
1/4" OD X 1/4 Male NPT |
Color: |
Silver |
Thread: |
NPT |
Medium: |
Gas |
Warranty: |
1 Year |

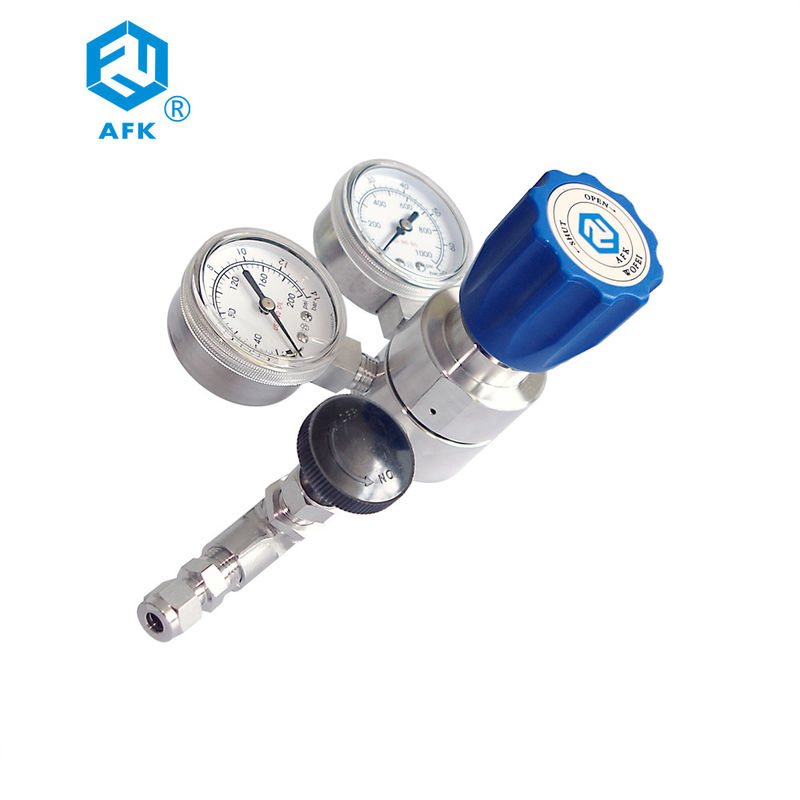

R11 Series stainless steel pressure regulator is Single-stage diaphragm, vacuum structure stainless diaphragm output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive gas etc..
Product Parameenters:
| Maximum Inlet Pressure | 500,3000psig |
| Outlet Pressure Ranges | 0~25, 0~50, 0~50,0~250,0~500psig |
| Safety test pressure | 1.5 times maximum inlet pressure |
| Operating Temperature | -40°F to 165°F / -40°c to 74°c |
| Leakage Rate AgainstAtmosphere | 2*10-8atm cc/sec he |
| Cv value | 0.08 |
Materials:
| Body | 316L,Brass |
| Bonnet | 316L. Brass |
| Diafragm | 316L |
| strainer | 316L(10mm) |
| Seat | PCTFE,PTEE,Vespel |
| Spring | 316L |
| Plunger valve core | 316L |
Application :
1.Laboratory
2.Gas Chromatography
3.Gas Lasers
4.Gas Bus-bar
5.Petrochemical Industry
6.Testing Equipment
Design Feature:
Single-stage pressure reducer
Maternal and diaphragm use hard seal form
Body NPT:1/4”NPT(F)
The internal structure easy to purge
Can set filters
Can use a panel or wall mounting
Flow Data
Dimensions:
Ordering Information
| R11 | L | B | B | D | G | 00 | 02 | P |
| Item | Body Material | Body Hole | Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
| R11 | L:316 | A | D:3000 psi | F:0-500psig | G:Mpa guage | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250psig | P:Psig/Bar Guage | 01:1/4″NPT(M) | 01:1/4″NPT(M) | R:With relief valve | |
| D | F:500 psi | K:0-50pisg | W:No guage | 23:CGGA330 | 10:1/8″ OD | N:Needle calve | ||
| G | L:0-25psig | 24:CGGA350 | 11:1/4″ OD | D:Diaphregm valve | ||||
| J | 27:CGGA580 | 12:3/8″ OD | ||||||
| M | 28:CGGA660 | 15:6mm OD | ||||||
| 30:CGGA590 | 16:8mm OD | |||||||
| 52:G5/8″-RH(F) | ||||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) |
