Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R41
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: WOODEN
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PC
Material: |
Stainless Steel,SS304/SS316L,316 |
Warranty: |
1 Year |
Color: |
Customized |
Material: |
Stainless Steel,SS304/SS316L,316 |
Warranty: |
1 Year |
Color: |
Customized |

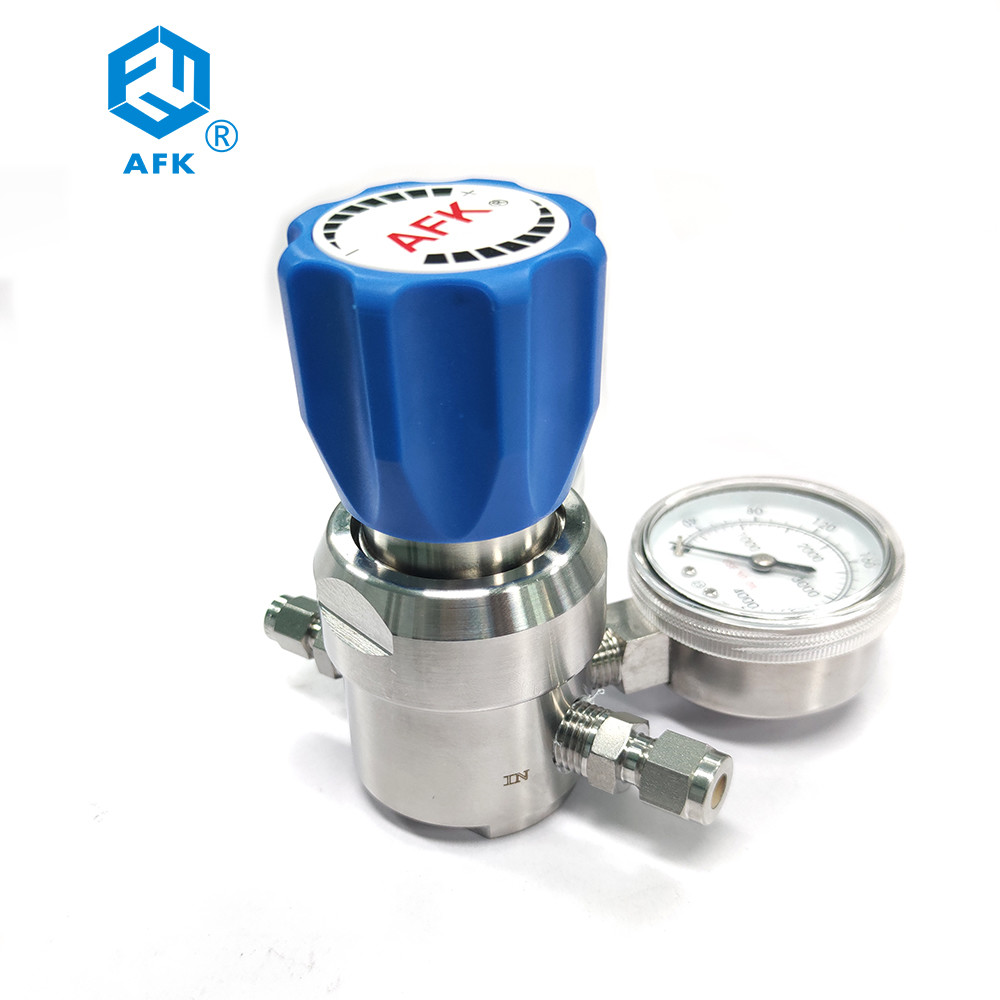

R41 Series stainless steel pressure reducers, piston pressure-reducing construction, stable output pressure, mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on.
Technical Data:
| Max inlet pressure | 3000, 6000 psig |
| Outlet pressure | 0~250, 0~500, 0~1500, 0~3000 psig |
| Proof pressure | 1.5 times of maximum rated pressure |
| Working temperature | -10°F-+165°F(-23°C-+74°C) |
| Leakage rate | bubble-tight testing |
| CV | 0.06 |
| Body Thread | 1/4″ NPT ( F ) |
| Body/Bonnet/Stem/Spring loaded | 316L |
| Filter mes | 316L (10μm) |
Main Features:
1) Piston pressure- reducing Structure.
2) Body Thread : 1/4″ NPT ( F )
3) Filter element installed internally
4) Panel mountable or wall mounted
Typical applications:
1) Laboratory
2) Gas analysis
3) Process contral
4) Gas bus-bar
5) Testing equipment
Flow Data:
Dimensions:
Ordering Information
| R41 | L | B | B | D | G | 00 | 02 | P |
| Item | Body Material | Body Hole | Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
| R41 | L:316 | A | B:6000 psi | D:0-3000psig | G:Mpa guage | 00:1/4 “NPT(F) | 00:1/4 “NPT(F) | P:Panel mounting |
| B:Brass | B | D:3000 psi | E:0-1500psig | P:Psig/Bar Guage | 00:1/4 “NPT(F) | 00:1/4 “NPT(F) | ||
| D | F:0-500psig | W:No guage | 10:1/8″ OD | 10:1/8″ OD | ||||
| G | G:0-250psig | 1:1/4″ OD | 11:1/4″ OD | |||||
| J | 12:3/8″ OD | 12:3/8″ OD | ||||||
| M | 15:6mm OD | 15:6mm OD | ||||||
| 16:8mm OD | 16:8mm OD | |||||||
| Other type is available | Other type is available |
