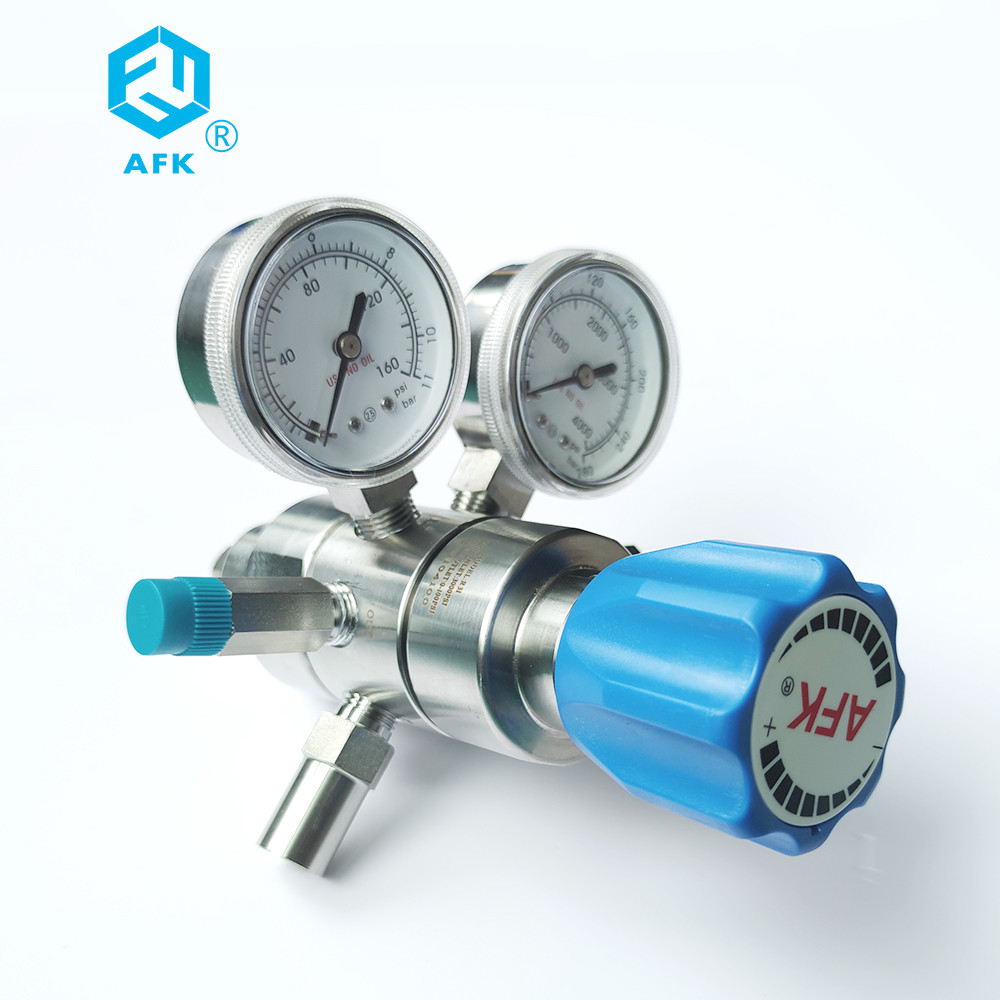

SS316L 3000psig High Pressure Pressure Regulator Intake Cga580 PCTFE Seat

Place of Origin China
Brand Name AFK
Certification CE
Model Number R31
Minimum Order Quantity 1
Price Negotiable
Packaging Details WOODEN
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel,SS304/SS316L,316 Warranty 1 Year
Product Name Liquid Oxygen Gas Stainless Steel Cryogenic Storage Tank Application Industry Equipment
Color Customized Pressure Normal Pressure
High Light

SS316L High Pressure Pressure Regulator

,

3000psig High Pressure Pressure Regulator

,

PCTFE Seat Water Pressure Gauge

Leave a Message
Product Description





Maximum Inlet Pressure 500,3000psig
Outlet Pressure Ranges 0~25, 0~50, 0~50,0~250,0~500psig
Safety test pressure 1.5 times maximum inlet pressure
Operating Temperature -40°F to +165°F / -40°c to 74°c
Leakage Rate Against Atmosphere 2*10-8atm cc/sec he
Cv value 0.06

Material:

Body 316L.Brass
Bonnet 316L. Brass
Diafragm 316L
Strainer 316L(10 μm)
Seat PCTFE,PTEE, Vespel
Spring 316L
Plunger valve core 316L

Design Feature:

Single-stage pressure reducer

Maternal and diaphragm use hard seal form

Body NPT:inlet and outlet interface 1/4”NPT(F)

The internal structure easy to purge

Can set filters

Can use a panel Intallation

Inlet form:Needle valve, membrane valve

Typical Applications:

Labotary

Gas Chromatography

Gas laser

Gas bus-bar

petro-chemical industry

Test equipment

Flow Data

Flow Data

Dimensions:

Dimensions

Ordering Information

R31 L B G G 00 00 02 P
Item Body Material Body Hole Inlet Pressure

Outlet

Pressure

Pressure Guage

Inlet

size

Outlet

size

Mark
R31 L:316 M G:3000 psi G:0-250psig G:Mpa guage 00:1/4 “NPT(F) 00:1/4 “NPT(F) P:Panel mounting
  B:Brass Q F:500 psi I:0-100psig P:Psig/Bar Guage 00:1/4 “NPT(F) 00:1/4 “NPT(F) R:With relief valve
        k:0-50psig W:No guage 23:CGA330 10:1/8″ OD N:With Needle valve
        L:0-25psig   24:CGA350 11:1/4″ OD D:With diaphragm valve
        Q:30″Hg Vac-30psig   27:CGA580 12:3/8″ OD
        S:30″Hg Vac-60psig   28:CGA660 15:6mm OD
        T:30″Hg Vac-100psig   30:CGA590 16:8mm OD
        U:30″Hg Vac-200psig   52:G5/8-RH(F) 74:M8X1-RH(M)
            63:W21.8-14(F)
            64:W21.8-14LF(F)

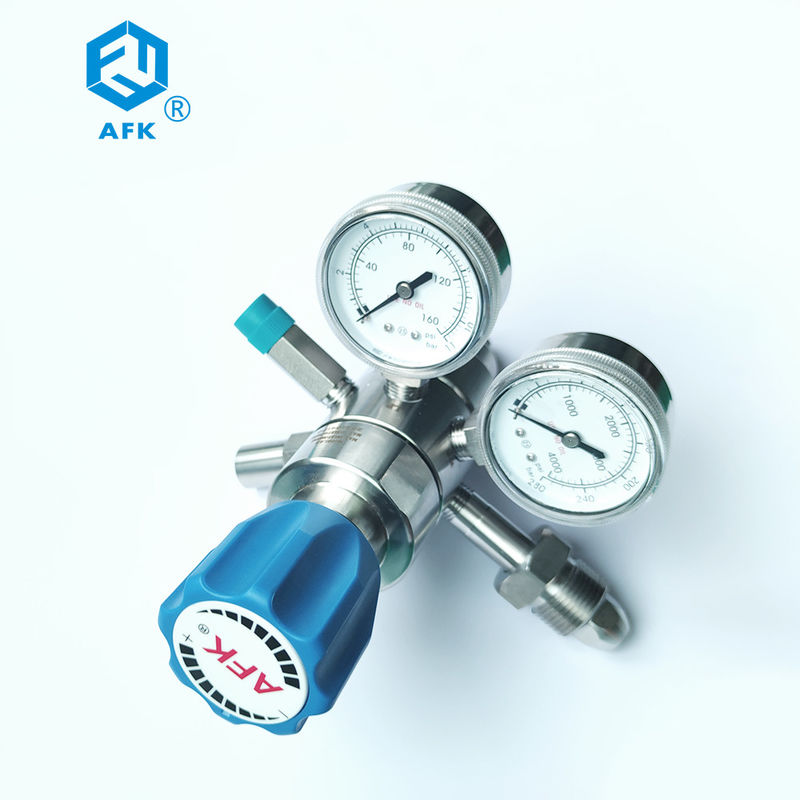

SS316L 3000psig High Pressure Pressure Regulator Intake Cga580 PCTFE Seat 2

SS316L 3000psig High Pressure Pressure Regulator Intake Cga580 PCTFE Seat 3
