NPT 4000Psi Stainless Steel Pressure Gauge PCTFE Seat Thread Joint

Product Details

Place of Origin: China

Brand Name: AFK

Certification: CE

Model Number: R31

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Expotrt Packing

Delivery Time: 1WEEK

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000PC

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    NPT Stainless Steel Pressure Gauge, 4000Psi Stainless Steel Pressure Gauge, PCTFE Seat SS Pressure Gauge


After-sales Service Provided:	Online Support	Condition:	New
Material:	Stainless Steel,SS304/SS316L,316	Warranty:	1 Year
Product Name:	Stainless Steel High Air Pressure Reservoir Tanks 4000 Liters	Type:	Stainless Steel Pressure Gauge

After-sales Service Provided:	Online Support
Condition:	New
Material:	Stainless Steel,SS304/SS316L,316
Warranty:	1 Year
Product Name:	Stainless Steel High Air Pressure Reservoir Tanks 4000 Liters
Type:	Stainless Steel Pressure Gauge

Description

NPT 4000Psi Stainless Steel Pressure Gauge PCTFE Seat Thread Joint

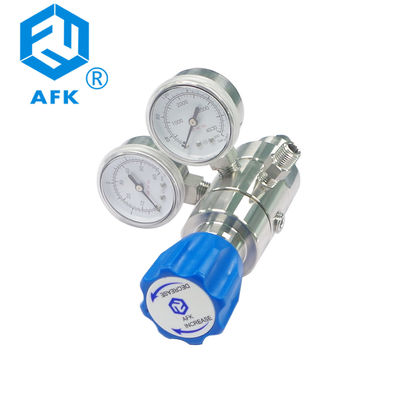

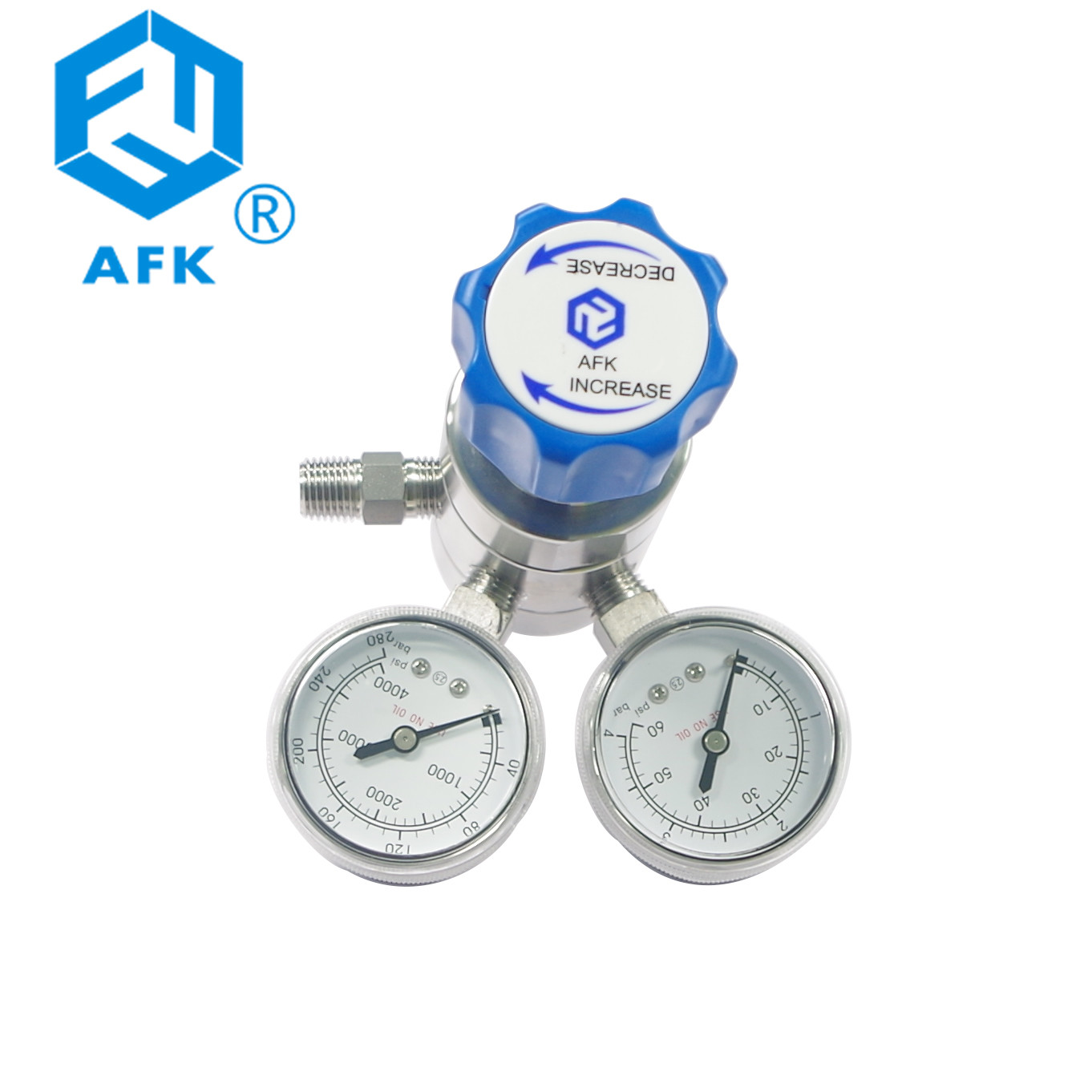

R31 series stainless steel pressure reducer, double stage diaphragm pressure reducing structure, stable output pressure, used in high purity gas, standard gas, corrosive gas, etc.

TYPICAL APPLICATIONS

Laboratory
gas chromatography instrument
gas laser gas, gas manifold
petrochemical industry
test equipment.

DESIGN FEATURES

Five hole designof the body
Double-stage pressure-reducing structure
Metal-to-meta diaphragm seal
Body thread: input and output connection 1 / 4 NPT (F)
Easy to clean internal structure
Filter element installed internally
Panel mounting and wall mounting available
Optional outlet:needle valve,diaphragm valve

SPECIFICATION

Maximum inlet pressure:3000,500psig
Output pressure:0~25,0~50,0~100,0~250psig
Safety testing pressuress:5 times of max pressure
Working tem:-40℃~+230℃
Leakage rate:2x10-8cc/sec He
Cv:0.06

MATERIAL

Body:316L,Brass
Bonnet:316L,Brass
Diaphragm:316L
Strainer:316L(10um)
Seat:PCTFE,PTFE,V,eapel
Spring:316L
Stem:316L

ORDERING INFORMATION

R31	L	B	G	G	00	00	02	P
Item	Body Materia	Body Hole	Inlet pressure	Outlet pressure	Pressure gauge	Inlet size	Outlet size	Options
R31	L:316	M	D:3000psi	G:0-250psig	G:MPa gauge	00:1/4 NPT(F)	00:1/4 NPT(F)	P:panel mounting
	B:Brass	Q	F:500psi	I:0_100psig	P:Psig/bar gauge	01:1/4 NPT(M)	01:1/4 NPT(M)	R:With relief valve
				K:0-50psig	W:No gauge	23:CGA330	10:1/8 OD	N:With needle valve
				L:0-25psig		24:CGA350	11:1/4 OD	D:With diaphragm valve
				Q:30 Hg Vac-30psig		27:CGA580	12:3/8OD
				S:30 Hg Vac-60psig		28:CGA660	15:6mm OD
				T:30 Hg Vac-100psig		30:CGA590	16:8mm OD
				U:30 Hg Vac-200psig		52:G5/8-RH(F)	74:M8X1-RH(M)
						63:W21.8-14H(F)
						64:W21.8-14LH(F)
