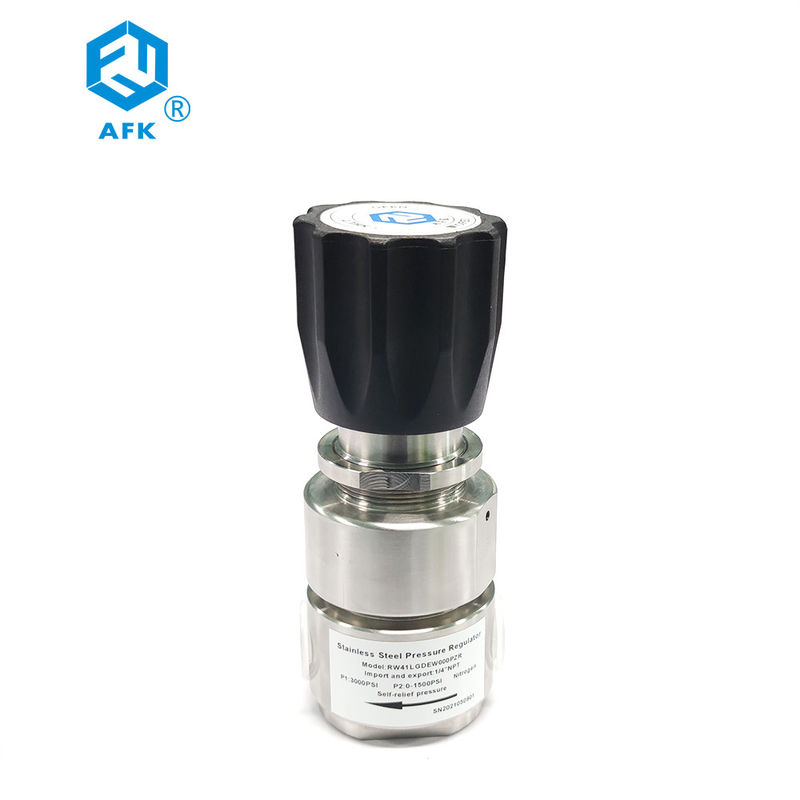

PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring

PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring
PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring

Large Image :  PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R41
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC

PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring

Description
After-sales Service Provided: Online Support Condition: New
Material: Stainless Steel,SS304/SS316L,316 Warranty: 1 Year
Max Inlet Pressure: 3000 , 6000 Psig Outlet Pressure Range: 0~250, 0~500, 0~1500psig
Proof Pressure: 1.5 Times Of Maximum Rated Presure Working Temperature: -10° F ~+165° F(-23°C+74°C)
Leakage Rate: Bubble-tight Testing Cv: 0.06
High Light:

Stainless Steel Hydrogen Pressure Regulator

,

PCTFE Seat Hydrogen Pressure Regulator

,

316L Spring High Pressure Regulator

Short Description:
Maximum Inlet Pressure 3000,6000psig
Outlet Pressure Ranges 0~250, 0~500, 0~1500,0~3000psig
Safety test pressure 1.5 times maximum inlet pressure
Operating Temperature -40°F to +165°F / -40°c to 74°c
Leak rate foam test
Cv value 0.06

Material:

Body 316L.Brass
Bonnet 316L. Brass
Diafragm 316L
Strainer 316L(10 μm)
Seat PCTFE
Spring 316L
Plunger valve core 316L
o-ring viton





PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring 0

PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring 1

PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring 2

Ordering Information:

RW41 L B B D G 00 02 P
Item Body Material Body Hole Inlet Pressure

Outlet

Pressure

Pressure Guage

Inlet

size

Outlet

size

Mark
RW41 L:316 A B:6000 psi D:0-3000psig G:Mpa guage 00:1/4 “NPT(F) 00:1/4 “NPT(F P:Panel mounting
  B:Brass B D:3000 psi E:0-1500psig P:Psig/Bar Guage 00:1/4 “NPT(F) 00:1/4 “NPT(F)
    D   F:0-500psig W:No guage 10:1/8″ OD 10:1/8″ OD
    G   G:0-250psig   1:1/4″ OD 11:1/4″ OD
    J       12:3/8″ OD 12:3/8″ OD
    M       15:6mm OD 15:6mm OD
            16:8mm OD 16:8mm OD
            Other type is available Other type is available



Design Feature: Typical Applications:

Piston type pressure relief structure.

Body NPT:1/4”NPT(F)

Can set filters

Can use a panel or wall mounting

Labotary

Gas Chromatography

Gas laser

Gas bus-bar

petro-chemical industry

Test equipment



Project

PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring 3 PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring 4
PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring 5 PCTFE Seat Stainless Steel Hydrogen Pressure Regulator 316L Spring 6
