Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: WL400
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PC
Material: |
Stainless Steel,SS304/SS316L,316 |
Warranty: |
1 Year |
Cv: |
0.14 |
Max Inlet Pressure: |
2200, 3000 Psig |
Outlet Pressure Range: |
0~25, 0~50, 0~100, 0-150, 0~200 |
Working Temperature: |
-40° F ~+165° F(-40°C+74°C) |
Valve Seat: |
FCTFE |
Brand Name: |
AFK |
Material: |
Stainless Steel,SS304/SS316L,316 |
Warranty: |
1 Year |
Cv: |
0.14 |
Max Inlet Pressure: |
2200, 3000 Psig |
Outlet Pressure Range: |
0~25, 0~50, 0~100, 0-150, 0~200 |
Working Temperature: |
-40° F ~+165° F(-40°C+74°C) |
Valve Seat: |
FCTFE |
Brand Name: |
AFK |

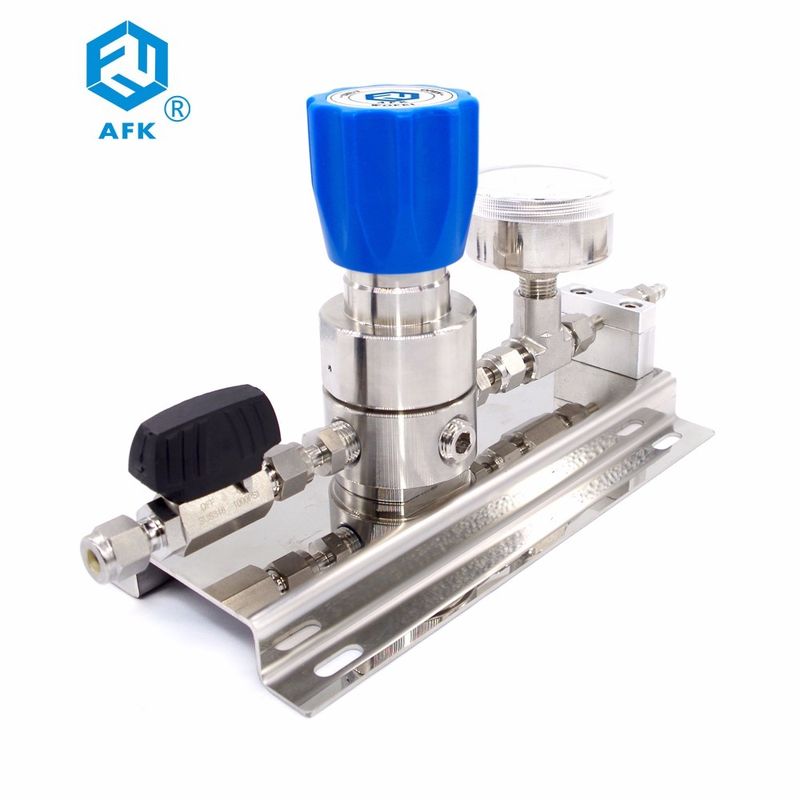

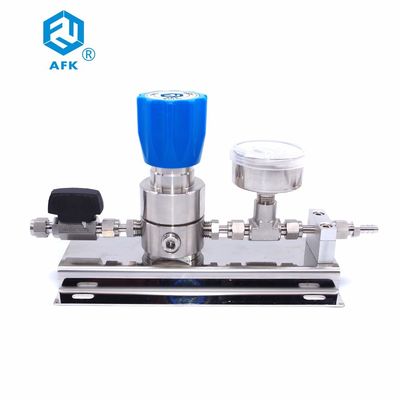

| It is applied to the gas pipeline terminal , easy to use the control gas flow size . Maximum input pressure up to 20.7Mpa (3000psi) , corrosion resistance , clean shop assembly test , and suitable for laboratory , gas analysis and other high purity gas. |
| Materials of Construction | Features |
|
Body: stainless steele Seat: PU , PTFE , PCTFE Inlet Connection: 1/4" tubr fitting , 1/4" FSR , 1/2"FSR Outlet Connection: 1/4" tubr fitting , 1/4" FSR Body of Diaphragm Valve: stainless steel |
Equipped R11 pressure regulator and high pressure ball valve Pressure regulator and pipe through the pressure test and leakage test Wall installation , easy to use and safe 2" stainless steel pressure gauge , reading clearly |
| Spec fications | |
|
Max . Inlet Pressure :3000 , 2200psi Max . Outlet Pressure :25 ,50 , 100 , 150 , 252 psi Working Temperature:-40℃~74℃(-40℉~165℉) Flow Rate:see flow Curve Chart Pressure Regulator Leakage Rate:2x10-8 atm.cc/sec He Cv:0.14 |
|
| WL4 | 1 | 1 | 1 | S | H | 1 | 1 | -N2 |
| Series | Function Options | Out Connection | Inlet Connection | Body Material | Input Pressure |
Ourlet Pressure |
Gauge | Gas Options |
| WL4 Terminal Secondary Pressure Reducing Regulator Assembly |
1.With emptying, purging distribution function |
1:1/4"NPT(F) | 1: 1/4"Welding | S:stainless steel | H:3000psi | 1:25psi | Blank: None | |
| 2.Without Emptying, purging distribution function | 2:1/4" Tube ftting | 2: 1/4"NPT(M) | H:3000psi | 2:50psi | 1:MPa | N2:nitrogen | ||
| 3.Emptying, purging distributiontpressure sensor | 3:3/8"NPT (F) | 3:3/8"Welding | C:nickel plated brass | L:1000psi | 3:100psi | 2:Bar/psi | O2:oxygen | |
| 4.With pressure sensor | 4:3/8" Tube ftting | 4:3/8" Tube ftting | O: Other | 4:150psi | 3:psi/KPa | H2:hydrogen | ||
| 5.Others | 5:1/2"NPT (F) | 5: 1/2"Welding | 5:250psi | 4:Other | C2H2:acetylene | |||
| 6:1/2"Tube ftting | 6:1/2"NPT(M) | 6:Other | ||||||
| 7:Other | 7:14"Tube ftting | CH4:methane | ||||||
| 8:3/8"Tube ftting | Ar:argon | |||||||
| 9:1/2"Tube ftting | He:helium | |||||||
| 10:Other | Air:air |
1) Laboratory
2) Gas Chromatography
3) Gas Laser
4)Tested instrumentation
|
|
|
|
