AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig

AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig
AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig
AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig

Large Image :  AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R52
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PC

AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig

Description
After-sales Service Provided: Online Support Material: Stainless Steel,SS304/SS316L,316
Warranty: 1 Year Cv: 0.15
Structure: Diaphragm Outlet Pressure Range: 0~15, 0~25, 0~50, 0~100, 0~250 Psig
Valve Seat: FCTFE, PTFE
High Light:

FCTFE High Pressure Single Gauge

,

PTFE High Pressure Single Gauge

,

3000psig Air Pressure Regulator

Product description

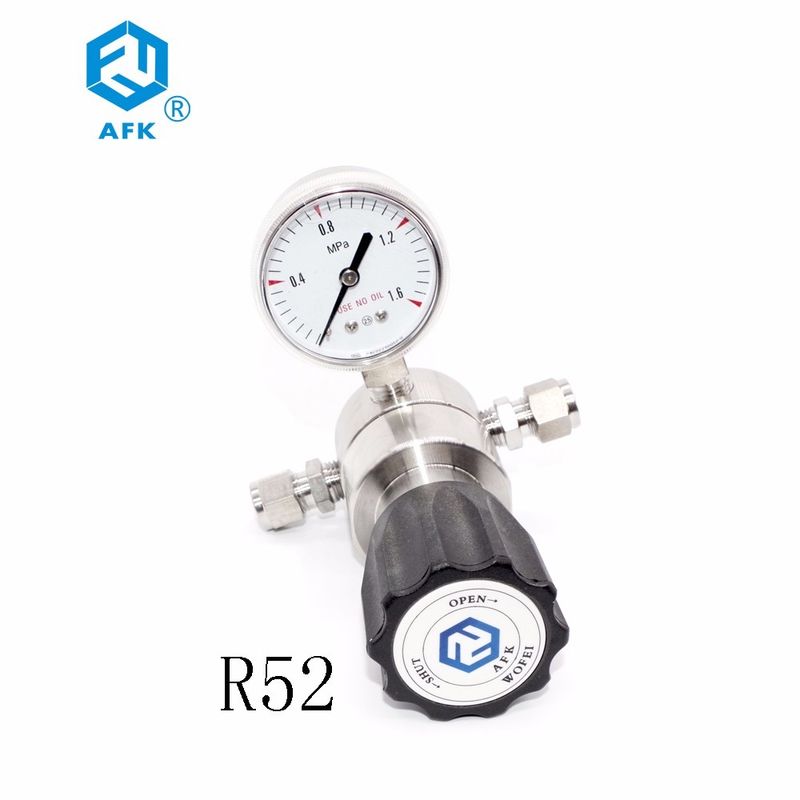

R52 Series stainless steel pressure reducer has a diaphragm pressure reducing contruction, stable output pressure. It is used usually in laboratory, pharmacy, chemical industry etc.



Main Features

Typical applications

Diaphragm pressure-reducing structure
Body Thread : 1/4" NPT ( F )
Filter mesh inside
Panel mountable or wall mounted
Metel-to-metal diaphragm seal

1) Laboratory
2) Gas analysis
4) Gas bus-bar
5) Petrochemcial industry
6)Testing equipment



Material List Tenchnical Data

Body:316L, Brass

Roof :316L, Brass

Diaphragm:316L

Filter mesh:316L (10μm)

Valve seat:PCTFE, PTFE, Vaspel

Spring loaded:316L

Stem:316L

Max inlet pressure:500, 1500, 3000psig

Outlet pressure:0~15, 0~25, 0~50, 0~100, 0~250 psig

Proof pressure:1.5 times of maximum rated pressure

Working temperature:-20°F-+150°F(29°C-+66°C)

Leakage rate:2*10-8 atm cc/sec He

Cv:0.15

Body Thread:1/4" NPT ( F )



AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig 0

AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig 1

AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig 2



AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig 3

AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig 4

R52 L B D G G 00 00 P
ltem Body
Material
Body
Hole
Inlet
pressure
Outlet pressure Pressure gauge Inlet size Outlet size Options
R52 L:316 A D:3000psig G:0~250psig G:MPa gauge 00:1/4" NPT(F) 00:1/4" NPT(F) P:Panel mounting
  B:Brass B E:1500psig l:0~100psig P:Psig/bar gauge 01:1/4" NPT(M) 01:1/4" NPT(M) R:With rllief valve
    D F:500psig K:0~50psig W:No gauge 23:CGA330 10:1/8" OD N:With needle valve
    G   L:0~25psig   24:CGA350 11:1/4" OD D:With diaphragm valve
    J   M:0~15psig   27:CGA580 12:3/8" OD
    M   Q:30 " Hg Vac-30psig   28:CGA660 15:6mm OD
        S:30 " Hg Vac-60psig   30:CGA590 16:8mm OD
        T:30 " Hg Vac-100psig   52:G5/8M-RH(F) 74:M8B 1-RH(M)
        U:30 " Hg Vac-200psig   63:W21 8-14RH(F) Other type is available
            64:W21 8-14LH(F)
            Other type is
available
