Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R11
Payment & Shipping Terms
Minimum Order Quantity: 1~10
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 10
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PC
After-sales Service Provided: |
Online Support |
Material: |
Stainless Steel,SS304/SS316L |
Warranty: |
1 Year |
Application: |
Industry Equipment |
Key Words: |
Stainless Steel Pressure Regulator |
Name: |

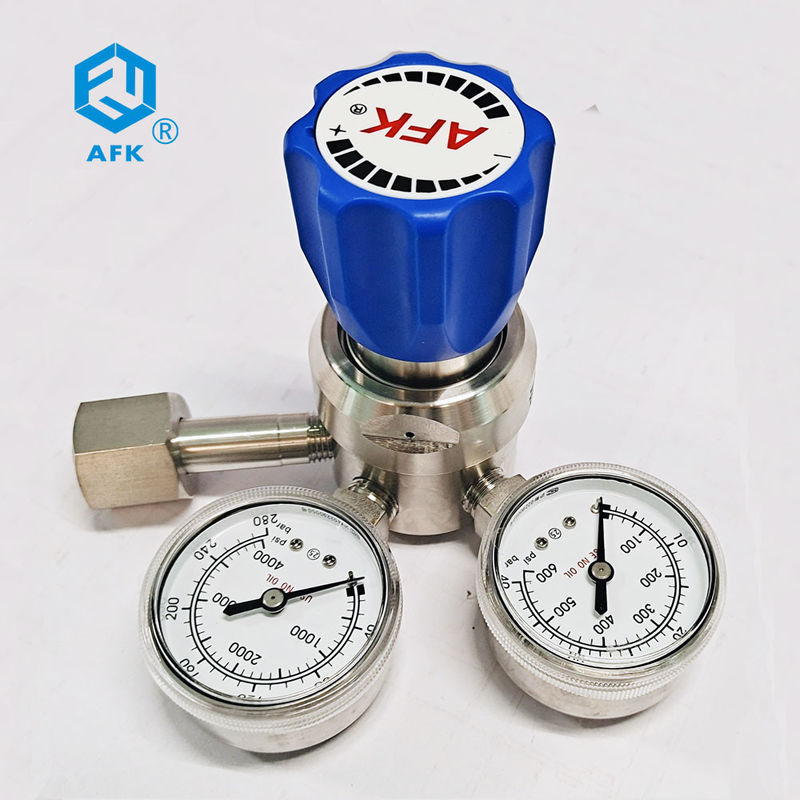

Double Gauge Pressure Regulator |
After-sales Service Provided: |
Online Support |
Material: |
Stainless Steel,SS304/SS316L |
Warranty: |
1 Year |
Application: |
Industry Equipment |
Key Words: |
Stainless Steel Pressure Regulator |
Name: |
Double Gauge Pressure Regulator |
Product Parameenters:
| Maximum Inlet Pressure | 500,3000psig |
| Outlet Pressure Ranges | 0~25, 0~50, 0~50,0~250,0~500psig |
| Safety test pressure | 1.5 times maximum inlet pressure |
| Operating Temperature | -40°F to 165°F / -40°c to 74°c |
| Leakage Rate AgainstAtmosphere | 2*10-8atm cc/sec he |
| Cv value | 0.08 |
Materials:
| Body | 316L,Brass |
| Bonnet | 316L. Brass |
| Diafragm | 316L |
| strainer | 316L(10mm) |
| Seat | PCTFE,PTEE,Vespel |
| Spring | 316L |
| Plunger valve core | 316L |
Application : 1.Laboratory 2.Gas Chromatography 3.Gas Lasers 4.Gas Bus-bar 5.Petrochemical Industry 6.Testing Equipment Design Feature: Single-stage pressure reducer Maternal and diaphragm use hard seal form Body NPT:1/4”NPT(F) The internal structure easy to purge Can set filters Can use a panel or wall mounting
Ordering Information
| R11 | L | B | B | D | G | 00 | 02 | P |
| Item | Body Material | Body Hole | Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
| R11 | L:316 | A | D:3000 psi | F:0-500psig | G:Mpa guage | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250psig | P:Psig/Bar Guage | 01:1/4″NPT(M) | 01:1/4″NPT(M) | R:With relief valve | |
| D | F:500 psi | K:0-50pisg | W:No guage | 23:CGGA330 | 10:1/8″ OD | N:Needle calve | ||
| G | L:0-25psig | 24:CGGA350 | 11:1/4″ OD | D:Diaphregm valve | ||||
| J | 27:CGGA580 | 12:3/8″ OD | ||||||
| M | 28:CGGA660 | 15:6mm OD | ||||||
| 30:CGGA590 | 16:8mm OD | |||||||
| 52:G5/8″-RH(F) | ||||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) |
