DIN477 2200psig Stainless Steel Pressure Regulator 1/4" NPT Industry

  • DIN477 2200psig Stainless Steel Pressure Regulator 1/4" NPT Industry
  • DIN477 2200psig Stainless Steel Pressure Regulator 1/4" NPT Industry
  • DIN477 2200psig Stainless Steel Pressure Regulator 1/4" NPT Industry
Place of Origin China
Brand Name AFK
Certification CE
Model Number R11
Minimum Order Quantity 1~10
Price Negotiable
Delivery Time 10
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Online Support Material Stainless Steel
Warranty 1 Year Application Industry Equipment
Key Words Stainless Steel Pressure Regulator Name Primary Pressure Reducer
High Light

DIN477 Stainless Steel Pressure Regulator

,

2200psig Stainless Steel Pressure Regulator

,

1/4" NPT Primary Pressure Reducer
Leave a Message
Product Description

R11 Series stainless steel pressure regulator is Single-stage diaphragm, vacuum structure stainless diaphragm output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive gas etc..

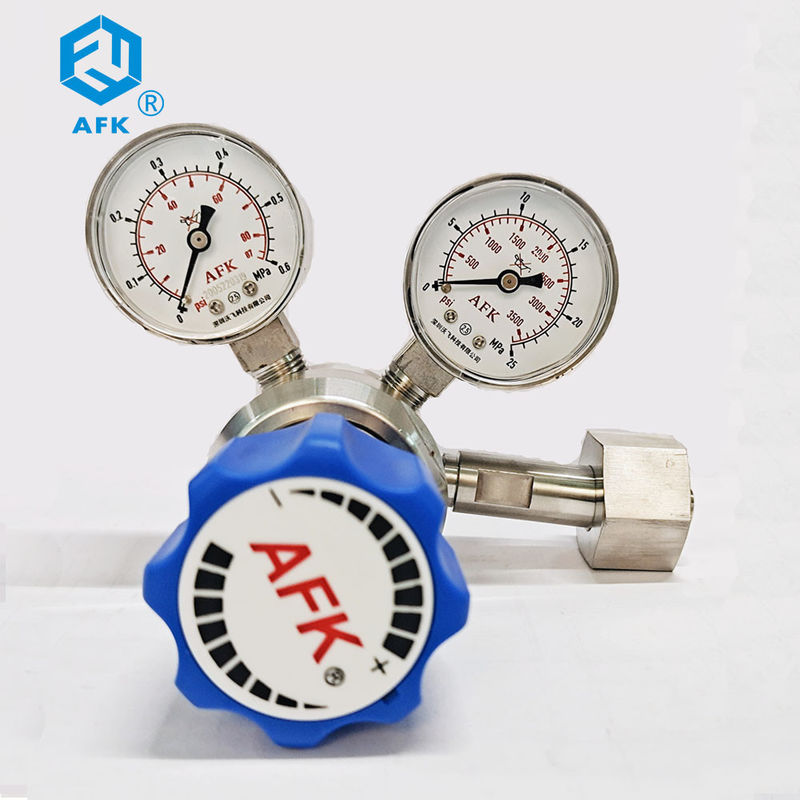

DIN477 2200psig Stainless Steel Pressure Regulator 1/4" NPT Industry 0

Ordering Information



R11 L B B D G 00 02 P
Item Body Material Body Hole Inlet Pressure

Outlet

Pressure

 Pressure Guage

Inlet

size

Outlet

size

 Mark
R11 L:316 A D:3000 psi F:0-500psig G:Mpa guage 00:1/4″NPT(F) 00:1/4″NPT(F) P:Panel mounting
  B:Brass B E:2200 psi G:0-250psig P:Psig/Bar Guage 01:1/4″NPT(M) 01:1/4″NPT(M) R:With relief valve
    D F:500 psi K:0-50pisg W:No guage 23:CGGA330 10:1/8″ OD N:Needle calve
    G   L:0-25psig   24:CGGA350 11:1/4″ OD D:Diaphregm valve
    J       27:CGGA580 12:3/8″ OD
    M       28:CGGA660 15:6mm OD
            30:CGGA590 16:8mm OD
            52:G5/8″-RH(F)
            63:W21.8-14H(F)
            64:W21.8-14LH(F)

Cylinder joint parameters



Configuration Item Number Cylinder Connection Thread Length Pressure Rating
009 BS341 No.3(Base Entry) 1/4” NPT Male 95mm-101mm/3.75”-4.00” 250 bar / 3625 PSI
010 BS341 No.3 1/4” NPT Male 95mm-101mm / 3.75” -4.00” 250 bar / 3625 PSI
011 BS341 No.4 (Base Entry) 1/4″ NPT Male 67mm/2.625” 250 bar/3625 PSI
012 BS341 No.4 1/4” NPT Male 95mm-101mm/3 75”-4.00” 250 bar/3625 PSI
013 BS341 No.6 1/4” NPT Male 95mm-101mm/3 75”-4.00” 250 bar / 3625 PSI
014 BS341 No.7 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar/ 3625 PSI
015 BS341 No.8 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar/ 3625 PSI
016 BS341 No.10 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar/3625 PSI
017 BS341 No 11 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar 7 3625 PSI
018 BS341 No. 13 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 50 bar/725 PSI
019 BS341 No 14 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar/3625 PSI
020 BS341 No.15 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 250 bar 7 3625 PSI
021 BS341 No30 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
022 BS341 No 31 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
023 BS341 No32 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar 74350 PSI
024 BS341 No 38 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
025 DIN 477 No.1 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
026 DIN 477 No.2 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
027 DIN 477 No.3 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 25 bar/ 360 PSI
028 DIN 477 No 31 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 25 bar/360 PSI
029 DIN 477 No.5 1/4″ NPT Male 95mm-101mm/3 75”-4.00” Refer to DIN 477 Standard
030 DIN 477 No.6 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
031 DIN 477 No.7 1/4″ NPT Male 95mm-101mm/3 75”-4.00” Refer to DIN 477 Standard
032 DIN 477 No.8 1/4″ NPT Male 95mm-101mm/3 75”-4.00” Refer to DIN 477 Standard
033 DIN 477 No. 9 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
034 DIN 477 No.10 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
035 DIN 477 No.11 1/4″ NPT Male 95mm-101mm/3 75”-4.00” Refer to DIN 477 Standard
036 DIN 477NO.12 1/4″ NPT Male 95mm-101mm/3 75”-4.00” Refer to DIN 477 Standard
037 DIN 477 NO.13 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
038 DIN 477 NO 14 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 300 bar/4350 PSI
039 CGA170 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
040 CGA180 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
041 CGA280 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
042 CGA290 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 34 5 bar/500 PSI
043 CGA296 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
044 CGA300 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 34 5 bar/500 PSI
045 CGA320 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
046 CGA326 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
047 CGA330 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
048 CGA346 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
049 CGA350 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
050 CGA510 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 34.5 bar/500 PSI
0S1 CGA520 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 345 bar/500 PSI
052 CGA540 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
053 CGA580 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
0M CGA590 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/3000 PSI
055 CGA660 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/ 3000 PSI
056 CGA705 1/4″ NPT Male 95mm-101mm/3 75”-4.00” 207 bar/ 3000 PSI
