3000psig R41 Stainless Steel Pressure Regulator 1/4" NPT With Safety Valve

Product Details

Place of Origin: China

Brand Name: AFK

Certification: CE

Model Number: R41

Payment & Shipping Terms

Minimum Order Quantity: 1~10

Price: Negotiable

Packaging Details: Expotrt Packing

Delivery Time: 10

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000PC

Get Best Price
Contact Now
Specifications
Highlight:

R41 Stainless Steel Pressure Regulator

,

3000psig Stainless Steel Pressure Regulator

,

1/4" NPT Gas Pressure Regulator

After-sales Service Provided:
Online Support
Material:
Stainless Steel
Warranty:
1 Year
Application:
Industry Equipment
Key Words:
Stainless Steel Pressure Regulator
Body Thread:
1/4″ NPT ( F )
After-sales Service Provided:
Online Support
Material:
Stainless Steel
Warranty:
1 Year
Application:
Industry Equipment
Key Words:
Stainless Steel Pressure Regulator
Body Thread:
1/4″ NPT ( F )
Description
3000psig R41 Stainless Steel Pressure Regulator 1/4" NPT With Safety Valve

R41 Series stainless steel pressure reducers, piston pressure-reducing construction, stable output pressure, mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on.



Technical Data:

Max inlet pressure 3000, 6000 psig
Outlet pressure 0~250, 0~500, 0~1500, 0~3000psig
Proof pressure 1.5 times of maximum rated pressure
Working temperature -10°F-+165°F(-23°C-+74°C)
Leakage rate bubble-tight testing
CV 0.06
Body Thread 1/4″ NPT ( F )
Body/Bonnet/Stem/Spring loaded 316L
Filter mes 316L (10μm)

 Main Features of Stainless Steel Pressure Regulator:

1) Piston pressure- reducing Structure.

2) Body Thread : 1/4″ NPT ( F )

3) Filter element installed internally

4) Panel mountable or wall mounted

Typical applications:

1) Laboratory

2) Gas analysis

3) Process contral

4) Gas bus-bar

5) Testing equipment

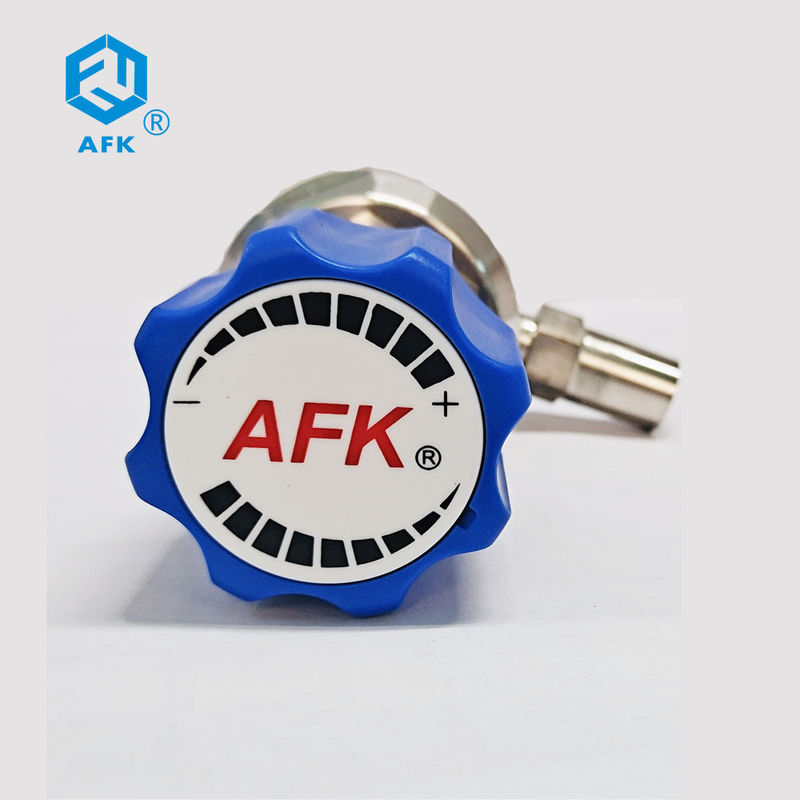

3000psig R41 Stainless Steel Pressure Regulator 1/4" NPT  With Safety Valve 0

Ordering Information

R41 L B B D G 00 02 P
Item Body Material Body Hole Inlet Pressure

Outlet

Pressure

Pressure Guage

Inlet

size

Outlet

size

Mark
R41 L:316 A B:6000 psi D:0-3000psig G:Mpa guage 00:1/4 “NPT(F) 00:1/4 “NPT(F) P:Panel mounting
  B:Brass B D:3000 psi E:0-1500psig P:Psig/Bar Guage 00:1/4 “NPT(F) 00:1/4 “NPT(F)
    D   F:0-500psig W:No guage 10:1/8″ OD 10:1/8″ OD
    G   G:0-250psig   1:1/4″ OD 11:1/4″ OD
    J       12:3/8″ OD 12:3/8″ OD
    M       15:6mm OD 15:6mm OD
            16:8mm OD 16:8mm OD
            Other type is available Other type is available
