CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS

CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS
CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS

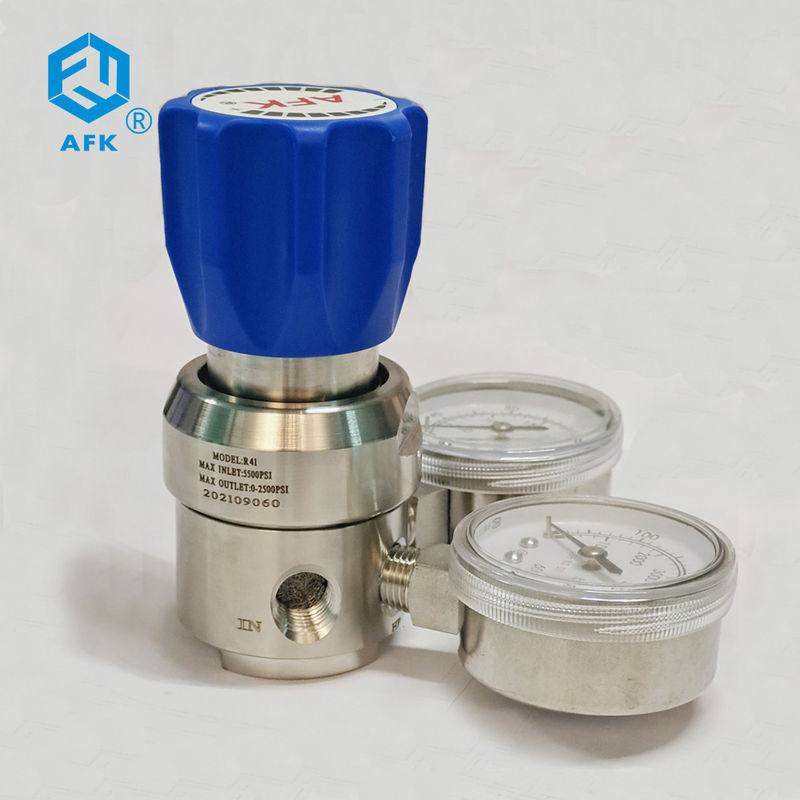

Large Image :  CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R41
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 10
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200

CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS

Description
After-sales Service Provided: Online Support Condition: New
Material: Stainless Steel Warranty: 1 Year
Application: Industry Equipment Key Words: Stainless Steel Pressure Regulator
CV: 0.08 Female Thread: 1/4" NPT(F)
Service: Complete After-sales Service Max Inlet Pressure: 6000psi
High Light:

6000PSI Double Gauge Pressure Regulator

,

CE Double Gauge Pressure Regulator

,

NPT SS Gas Pressure Regulator

R41 series stainless steel pressure reducer adopts piston pressure reducing structure with stable output pressure. It is mainly used for high input pressure requirements, with a maximum pressure of 6000PSI. It is suitable for pure gas, standard gas, corrosive gas, etc.
Design features
Piston type pressure reducing structure
Female thread: 1 / 4 "NPT (f)
Built in filter screen
Panel type or wall type installation can be adopted

characteristic
parameter
1 Maximum input pressure 3000,6000psi
2 Output pressure 0~250,0~500,0~1500,0~3000psig
3 Safety test pressure 1.5 times the maximum input pressure
4 Applicable temperature -23℃~+230℃
5 Leakage rate foam
6 CV 0.06

CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS 0
