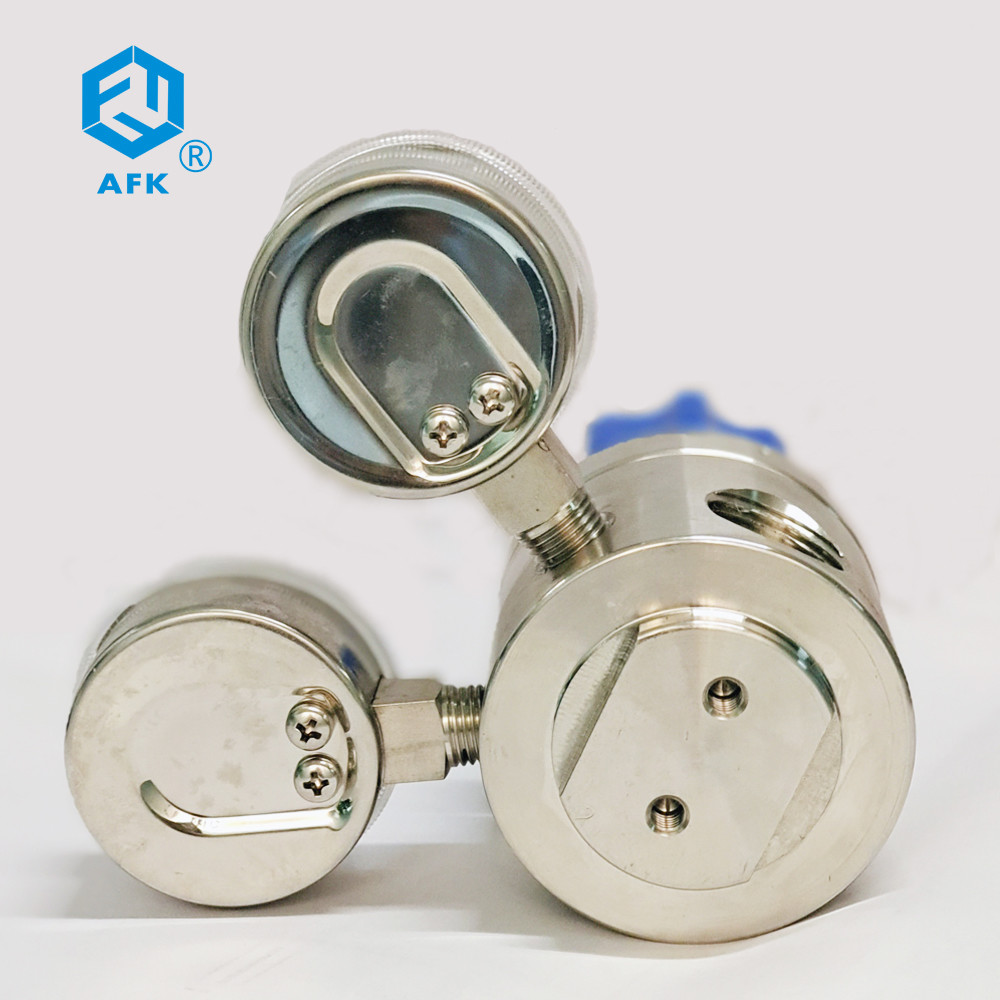

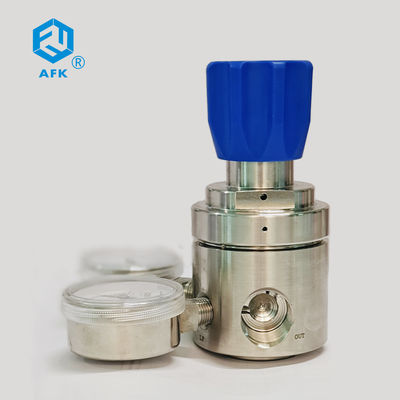

SS PCTFE Nitrogen Oxygen Pressure Regulator Diaphragm Double Gauge AFK R13

  • SS PCTFE Nitrogen Oxygen Pressure Regulator Diaphragm Double Gauge AFK R13
  • SS PCTFE Nitrogen Oxygen Pressure Regulator Diaphragm Double Gauge AFK R13
  • SS PCTFE Nitrogen Oxygen Pressure Regulator Diaphragm Double Gauge AFK R13
Place of Origin China
Brand Name AFK
Certification CE
Model Number R13
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 10Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 200PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Online Support Condition New
Weight 2.7kg Material Stainless Steel
Warranty 1 Year Application Industry Equipment
Working Pressure 1000psi Key Words Stainless Steel Pressure Regulator
Cv 1.8
High Light

PCTFE Nitrogen Oxygen Pressure Regulator

,

SS Oxygen Pressure Regulator

,

Diaphragm Double Gauge Pressure Regulator
Leave a Message
Product Description
R13 series stainless steel pressure reducer, single-stage diaphragm pressure reducing structure, stainless steel diaphragm pressure transmission, stable output pressure, mainly used in medium flow gas system.
characteristic parameter
1
Maximum inlet pressure
500,1500psig
2
Output pressure
0~25,0~50,0~100,0~125psig
3
Sadety testing pressure
1.5times of max inlet pressure
4
Working tem
-40℃~+230℃
5
Internal leakage rate
2x10-8 atm cc/sec He
6
Cv
1.8
texture of material
1
Body
316L,Brass
2
Bonnet
316L,Brass
3
Diaphragm
316L
4
Strainer
316L(10μm)
5
Seat
PCTFE,PTFE,Vespel
6
Spring
316L
7
Valve stem
316L
8
Weight
2.7kg



SS PCTFE Nitrogen Oxygen Pressure Regulator Diaphragm Double Gauge AFK R13 0





1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve

4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
