Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R41
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 10Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200PC
Condition: |
New |
Material: |
Stainless Steel |
Warranty: |
1 Year |
Application: |
Industry Equipment |
Key Words: |

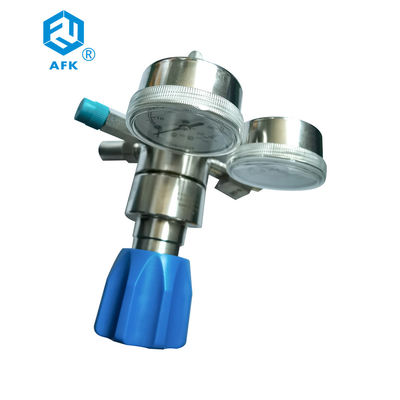

Nitrogen/Oxigen/CO2 Gas Regulator |
CV: |
0.06 |
Condition: |
New |
Material: |
Stainless Steel |
Warranty: |
1 Year |
Application: |
Industry Equipment |
Key Words: |
Nitrogen/Oxigen/CO2 Gas Regulator |
CV: |
0.06 |
1.Piston pressure reducing instructure.
2. Stable pressure.
3. Used for high input pressure demand. 6000PSI.
4. Apply for high purity gas, standard gas, corrosive gas etc.
Technical Parameter:
| Maximum Inlet Pressure | 3000,6000psig | |||||
| Outlet Pressure Ranges | 0~250, 0~500, 0~1500,0~3000psig | |||||
| Safety test pressure | 1.5 times maximum inlet pressure | |||||
| Operating Temperature | -40°F to +165°F / -40°c to 74°c | |||||
| Leak rate | foam test | |||||
| Cv value | 0.06 | |||||
Material:
| Body | 316L.Brass | |
| Bonnet | 316L. Brass | |
| Diafragm | 316L | |
| Strainer | 316L(10 μm) | |
| Seat | PCTFE | |
| Spring | 316L | |
| Plunger valve core | 316L | |
| o-ring | Fluororubber |
|
