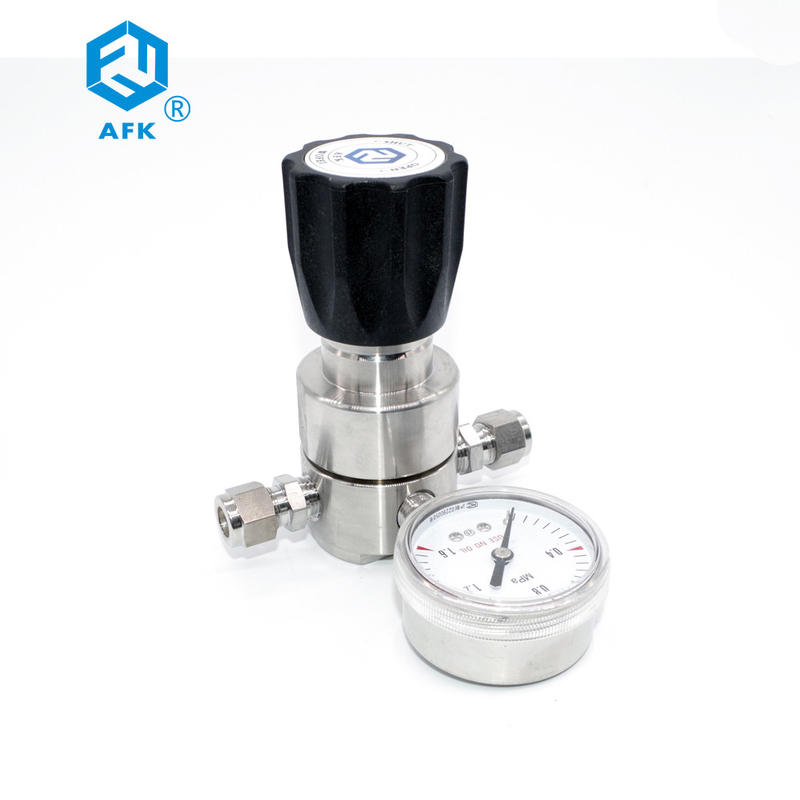

AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE

AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE
AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE
AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE

Large Image :  AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R52
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 20Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200PC

AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE

Description
After-sales Service Provided: Online Support Condition: New
Material: Stainless Steel,316 Warranty: 1 Year
Key Words: Oxygen/Nitrogen/Hydrogen Gas Pressure Regulator Valve Seat: FCTFE, PTFE
Max Inlet Pressure: 500, 1500, 3000 Psig Max Outlet Pressure: 0~15, 0~25, 0~50, 0~100, 0~250 Psig
Cv: 0.15
High Light:

AFK R52 Single Gauge Pressure Regulator

,

PTFE Single Gauge Pressure Regulator

,

250psi Oxygen Nitrogen Pressure Regulator

Product Application


R52 Series stainless steel pressure reducer has a diaphragm pressure reducing contruction, stable output pressure. It is used usually in laboratory, pharmacy, chemical industry etc.

Technical Data

Max inlet pressure
500, 1500, 3000 psig
Outlet pressure
0~15, 0~25, 0~50, 0~100, 0~250 psig
Proof pressure
1.5 times of maximum rated pressure
Working temperature
-20°F-+150°F(29°C-+66°C)
Leakage rate
2*10-8 atm cc/sec He
Cv
0.15
Body Thread
1/4" NPT ( F )



Material List
Body
SS316L, Brass
Roof
SS316L, Brass
Diaphragm
SS316L
Filter mesh
316L (10μm)
Valve seat
PCTFE, PTFE, Vaspel
Spring loaded
SS316L
Stem
SS316L



Typical applications

1) Laboratory
2) Gas analysis
4) Gas bus-bar
5) Petrochemcial industry
6)Testing equipment

AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE 0
Main Features
1) Diaphragm pressure-reducing structure
2) Body Thread : 1/4" NPT ( F )
3) Filter mesh inside
4) Panel mountable or wall mounted
5) Metel-to-metal diaphragm seal
AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE 1







AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE 2



AFK R52 Single Gauge Pressure Regulator 250psi Stainless Steel PTFE 3

 Ordeering Information

R52 L B G G 00 00 02 P
Item Body Material Body Hole Inlet Pressure Outlet Pressure Pressure Guage Inlet size Outlet size Mark
R52 L:316 A G:3000 psi G:0-250psig G:Mpa guage 00:1/4 “NPT(F) 00:1/4 “NPT(F) P:Panel mounting
  B:Brass B M:1500 psi I:0-100psig P:Psig/Bar Guage 00:1/4 “NPT(F) 00:1/4 “NPT(F) R:With relief valve
    D F:500 psi k:0-50psig W:No guage 23:CGA330 10:1/8″ OD N:With Needle valve
    G   L:0-25psig   24:CGA350 11:1/4″ OD D:With diaphragm valve
    J   Q:30″Hg Vac-30psig   27:CGA580 12:3/8″ OD
    M   S:30″Hg Vac-60psig   28:CGA660 15:6mm OD
        T:30″Hg Vac-100psig   30:CGA590 16:8mm OD
        U:30″Hg Vac-200psig   52:G5/8-RH(F) 74:M8X1-RH(M)
            63:W21.8-14RH(F) Other type is available
            64:W21.8-14LH(F)
            Other type is available
