Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R52
Payment & Shipping Terms
Minimum Order Quantity: 1~10
Price: Negotiable

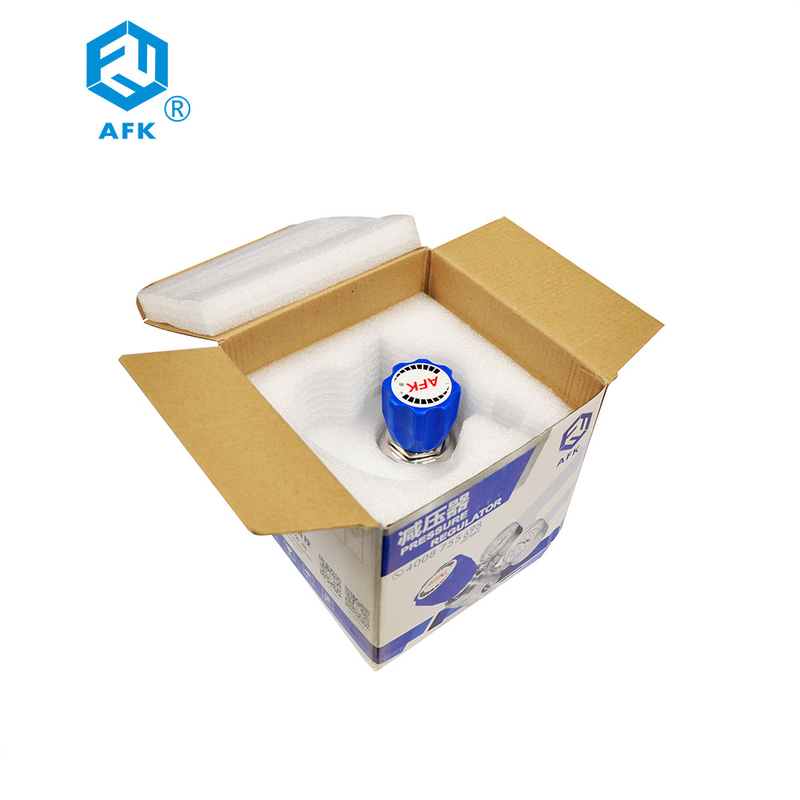

Packaging Details: Expotrt Packing
Delivery Time: 20Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200PC
After-sales Service Provided: |
Online Support |
Condition: |
New |
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
Key Words: |
Nitrogen Nnd Oxygen Pressure Regulator |
Max Inlet Pressure: |
500, 1500, 3000 Psig |
Outlet Pressure Range: |
0~15, 0~25, 0~50, 0~100, 0~250 Psig |
Cv: |
0.15 |
After-sales Service Provided: |
Online Support |
Condition: |
New |
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
Key Words: |
Nitrogen Nnd Oxygen Pressure Regulator |
Max Inlet Pressure: |
500, 1500, 3000 Psig |
Outlet Pressure Range: |
0~15, 0~25, 0~50, 0~100, 0~250 Psig |
Cv: |
0.15 |
Technical Data of Nitrogen Nnd Oxygen Pressure Regulator
Max inlet pressure | 500, 1500, 3000 psig |
Outlet pressure | 0~15, 0~25, 0~50, 0~100, 0~250 psig |
Proof pressure | 1.5 times of maximum rated pressure |
Working temperature | -20°F-+150°F(29°C-+66°C) |
Leakage rate | 2*10-8 atm cc/sec He |
Cv | 0.15 |
Body Thread | 1/4" NPT ( F ) |
Material List of Stainless Steel 316 Nitrogen Nnd Oxygen Pressure Regulator
Body | SS316L, Brass |
Roof | SS316L, Brass |
Diaphragm | SS316L |
Filter mesh | 316L (10μm) |
Valve seat | PCTFE, PTFE, Vaspel |
Spring loaded | SS316L |
Stem | SS316L |
Ordeering Information
R52 | L | B | G | G | 00 | 00 | 02 | P |
Item | Body Material | Body Hole | Inlet Pressure | Outlet Pressure |
Pressure Guage | Inlet size |
Outlet size |
Mark |
R52 | L:316 | A | G:3000 psi | G:0-250psig | G:Mpa guage | 00:1/4 “NPT(F) | 00:1/4 “NPT(F) | P:Panel mounting |
B:Brass | B | M:1500 psi | I:0-100psig | P:Psig/Bar Guage | 00:1/4 “NPT(F) | 00:1/4 “NPT(F) | R:With relief valve | |
D | F:500 psi | k:0-50psig | W:No guage | 23:CGA330 | 10:1/8″ OD | N:With Needle valve | ||
G | L:0-25psig | 24:CGA350 | 11:1/4″ OD | D:With diaphragm valve | ||||
J | Q:30″Hg Vac-30psig | 27:CGA580 | 12:3/8″ OD | |||||
M | S:30″Hg Vac-60psig | 28:CGA660 | 15:6mm OD | |||||
T:30″Hg Vac-100psig | 30:CGA590 | 16:8mm OD | ||||||
U:30″Hg Vac-200psig | 52:G5/8-RH(F) | 74:M8X1-RH(M) | ||||||
63:W21.8-14RH(F) | Other type is available | |||||||
64:W21.8-14LH(F) | ||||||||
Other type is available |
