Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R11
Payment & Shipping Terms
Minimum Order Quantity: 1~10
Price: Negotiable
Packaging Details: WOODEN
Delivery Time: 20Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200PC
After-sales Service Provided: |
Online Support |
Condition: |
New |
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
Key Words: |
Nitrogen Argon Ammonia Gas Pressure Regulator |
Inlet Pressure Range: |
2000psi |
Outlet Pressure Range: |
300psi |
Inlet And Outlet: |
1/8"NPT F |
After-sales Service Provided: |
Online Support |
Condition: |
New |
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
Key Words: |
Nitrogen Argon Ammonia Gas Pressure Regulator |
Inlet Pressure Range: |
2000psi |
Outlet Pressure Range: |
300psi |
Inlet And Outlet: |
1/8"NPT F |
| Specification | ||
| 1 | max. inlet pressure | 500,3000psi |
| 2 | outlet pressure | 0~25,0~50,0~100,0~250,0~500psig |
| 3 | proof pressure | 1.5times of maximum rated pressure |
| 4 | working tem | -40℉~+446℉(-40℃~+230℃) |
| 5 | leakage rate | 2*10-8 atm cc/sec He |
| 6 | Cv | 0.08 |
| Material | ||
| 1 | Body | 316L,Brass |
| 2 | Roof | 316L,Brass |
| 3 | Diaphragm | 316L |
| 4 | Filter mesh | 316L(10μm) |
| 5 | Valve seat | PCTFE,PTFE,Vespel |
| 6 | Spring loaded | 316L |
| 7 | Valve disc regulation pole | 316L |
|
Typical Applications |
| Laboratory | |
| Gas chromeatograph | |
| Gas laser | |
| Gas bus | |
| Oil and chemical industry | |
| Tested instrumentation |

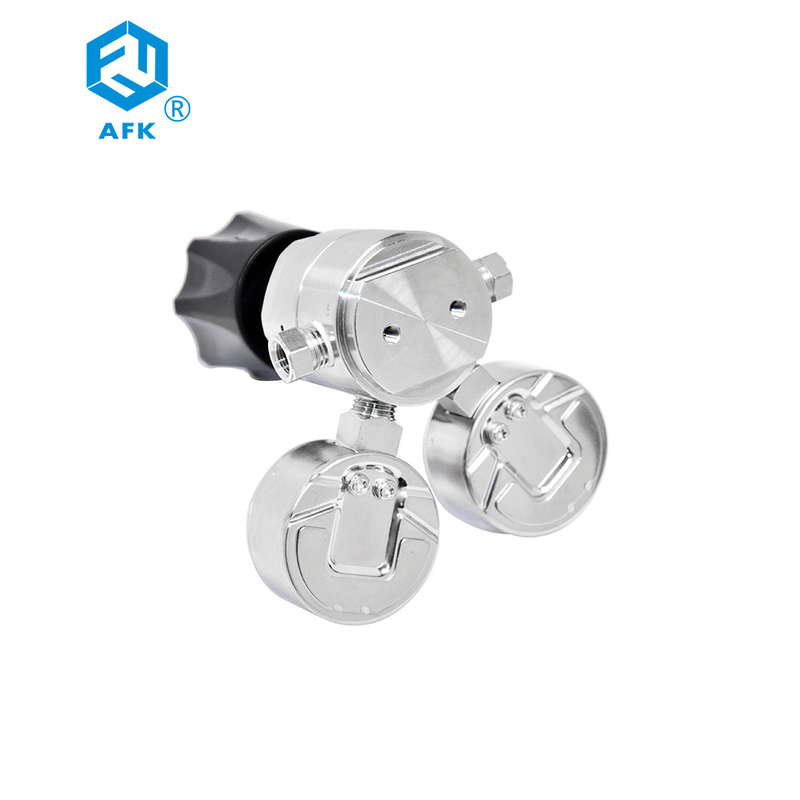

R11 Series stainless steel pressure regulator steel pressure regulator is Single-stage diaphragms, vacuum structure Stainless diaphragms output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive etc.
| Design Features | |
| 1 | Single-stage reduce structure |
| 2 | Use hard-seal between body and diaphragm |
| 3 | Body thread:1/4"NPT (F) |
| 4 | Easy to sweep inside body |
| 5 | Filter mesh inside |
| 6 | Panel mountable or wall mounted |
Ordering Information
| R11 | L | B | B | D | G | 00 | 02 | P |
| Item | Body Material | Body Hole | Inlet Pressure | Outlet Pressure |
Pressure Guage | Inlet size |
Outlet size |
Mark |
| R11 | L:316 | A | D:3000 psi | F:0-500psig | G:Mpa guage | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250psig | P:Psig/Bar Guage | 01:1/4″NPT(M) | 01:1/4″NPT(M) | R:With relief valve | |
| D | F:500 psi | K:0-50pisg | W:No guage | 23:CGGA330 | 10:1/8″ OD | N:Needle calve | ||
| G | L:0-25psig | 24:CGGA350 | 11:1/4″ OD | D:Diaphregm valve | ||||
| J | 27:CGGA580 | 12:3/8″ OD | ||||||
| M | 28:CGGA660 | 15:6mm OD | ||||||
| 30:CGGA590 | 16:8mm OD | |||||||
| 52:G5/8″-RH(F) | ||||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) |
