316 Double Gauge Stainless Steel Pressure Regulator Piston Pressure Reducing Regulator

  • 316 Double Gauge Stainless Steel Pressure Regulator Piston Pressure Reducing Regulator
  • 316 Double Gauge Stainless Steel Pressure Regulator Piston Pressure Reducing Regulator
  • 316 Double Gauge Stainless Steel Pressure Regulator Piston Pressure Reducing Regulator
  • 316 Double Gauge Stainless Steel Pressure Regulator Piston Pressure Reducing Regulator
Place of Origin China
Brand Name AFK
Certification CE
Model Number R41
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 20Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 200PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Online Support Condition New
Material Stainless Steel Warranty 1 Year
Application Industry Color Silver
CV 0.06
High Light

Piston Stainless Steel Pressure Regulator

,

Double Gauge Stainless Steel Pressure Regulator

,

SS316 Pressure Reducing Regulator
Leave a Message
Product Description

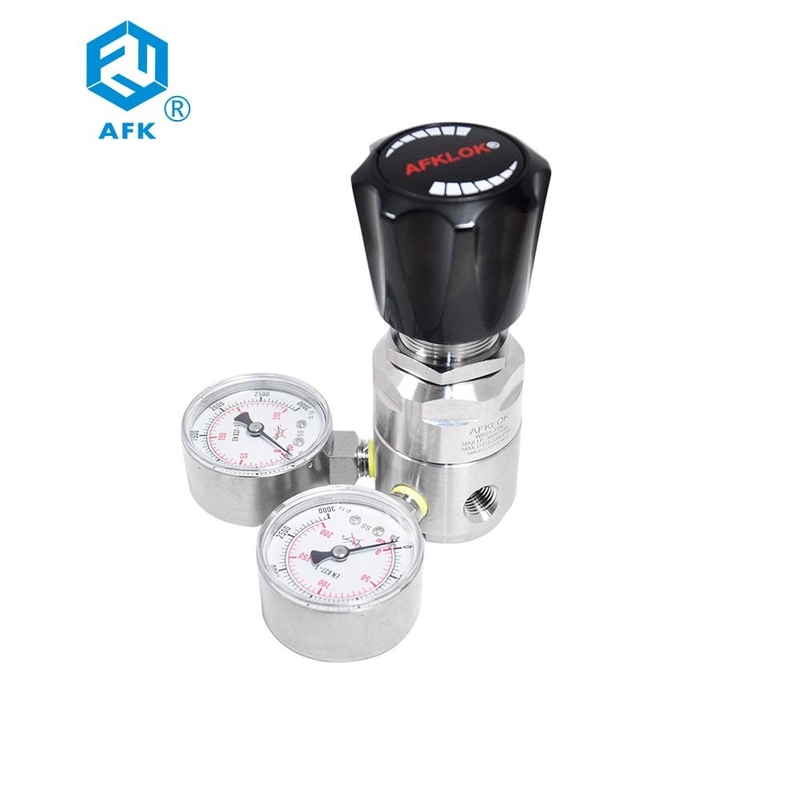

AFK R41 High Pressure Stainless Steel 316 Double Gauge Piston Type Pressure Reducing Regulator



R41 Serie stainless steel pressure reducers, piston pressure reducing construction, stable output pressure, mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on.

316 Double Gauge Stainless Steel Pressure Regulator Piston Pressure Reducing Regulator 0



Function

1. The gas stored in the cylinder is depressurized by the pressure reducer to reach the required working pressure.
2. The high and low pressure gauges of the pressure reducer indicate the high pressure in the bottle and the working pressure after decompression.
3. The pressure of the gas in the pressure stabilizing cylinder decreases gradually with the consumption of the gas, while the working pressure of the gas is required to be relatively stable in gas welding and gas cutting. The stainless steel pressure reducer can ensure the stable output of gas working pressure, so that the working pressure delivered from the low-pressure chamber will not change with the change of high-pressure gas pressure in the cylinder.
Technical Parameter of Double Gauge Piston Type Pressure Reducing Regulator
Maximum Inlet Pressure
3000,6000psig
Outlet Pressure Ranges
0~250, 0~500, 0~1500,0~3000psig
Safety test pressure
1.5 times maximum inlet pressure
Operating Temperature
-40°F to +165°F / -40°c to 74°c
Leak rate
foam test
Cv value
0.06
Material of Double Gauge Piston Type Pressure Reducing Regulator
1
Body
316L.Brass
2
Bonnet
316L. Brass
3
Diafragm
316L
4
Strainer
316L(10 μm)
5
Seat
PCTFE
6
Spring
316L
7
Plunger valve core
316L
8
o-ring
viton

DESIGN FEATURES

1 Single-stage reduce structure
2 Use hard-seal between body and Diaphragm
3 Body Thread:1/4" NPT (F)
4 Filter mesh inside
5 Easy to sweep inside body
6 Panel mountable or wall mounted


Product selection of Double Gauge Piston Type Pressure Reducing Regulator
R41
L
B
B
D
G
00
00
P
Item
Body Materia
Body Hole
Inlet Pressure
Outlet Pressure
Pressure Gauge
Inlet Size
Outlet Size
Options
R41
L:316
A
D:0~3000psig
G:MPa gauge
00:1/4″NPT(F)
00:1/4″NPT(F)
P:Panel mounting

B:Brass
B
D:3000psig
E:0~1500psig
P:Psig/bar gauge
00:1/4″NPT(M)
00:1/4″NPT(M)


D

F:0~500psig
W:No gauge
10:1/8″OD
10:1/8″OD


G

G:0~250psig

11:1/4″OD
11:1/4″OD


J

12:3/8″OD
12:3/8″OD


M

15:6mm”OD
15:6mm”OD


16:8mm”OD
16:8mm”OD


Other type is available
Other type is available
