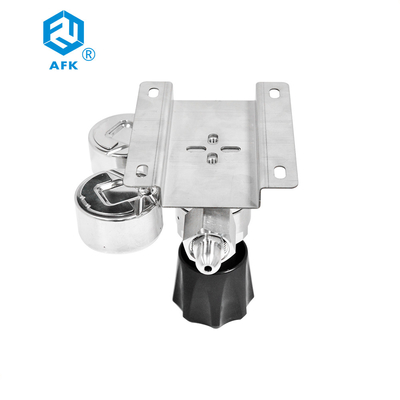

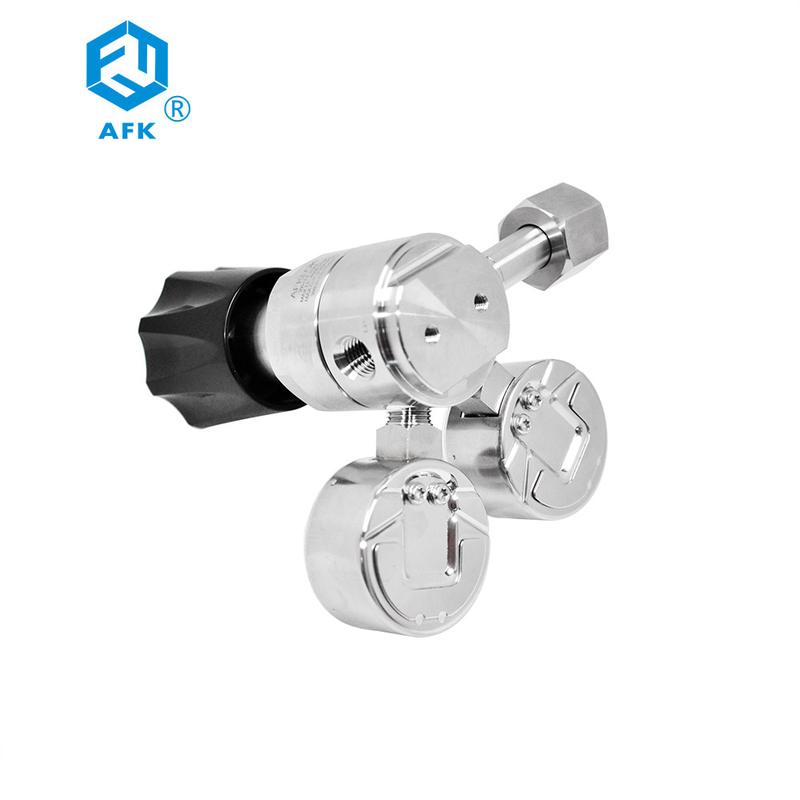

Single diaphragms Stainless Steel Nitrogen Regulator vacuum With Inlet CGA540 Cylinder
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| After-sales Service Provided | Online Support | Condition | New |
|---|---|---|---|
| Material | Stainless Steel,316 | Warranty | 1 Year |
| Application | Industry | Color | Silver |
| Key Words | AFK Nitrogen CO2 Pressure Regulator | Max Inlet Pressure | 500,3000,4000,6000psig |
| Outlet Pressure | 0~25,0~50,0~100,0~250,0~500,0~4000psig | ||
| High Light | Single Diaphragms Stainless Steel Nitrogen Regulator,Inlet CGA540 Stainless Steel Nitrogen Regulator,Vacuum Nitrogen Gas Cylinder Pressure Regulator |
||
Product Description
AFK Nitrogen CO2 Pressure Regulator with inlet CGA540 Cylinder Connection Industrial
| Specification of Nitrogen CO2 Pressure Regulator | ||
| 1 | Max inlet pressure | 500,3000,4000,6000psig |
| 2 | Outlet pressure | 0~25,0~50,0~100,0~250,0~500,0~4000psig |
| 3 | Proof pressure | 1.5times of maximum rated pressure |
| 4 | Working tem | -40℉~+466℉(40℃~+230℃) |
| 5 | Leakage rate | 2*10-8 atm cc/sec He |
| 6 | Cv | 0.08 |
| R11 Series stainless steel pressure regulator steel pressure regulator is Single-stage diaphragms, vacuum structure Stainless diaphragms output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive etc. |
Main Features of Nitrogen CO2 Pressure Regulator
| 1 | Single -stage reduce Structure |
| 2 | Use hard-seal between body and diaphragm |
| 3 | Body Thread : 1/4" NPT ( F ) |
| 4 | Easy to sweep inside body |
| 5 | Filter mesh inside |
| 6 | Panel mountable or wall mounted |
Typical applications of Nitrogen CO2 Pressure Regulator
| 1 | Laboratory |
| 2 | Gas Chromatograph |
| 3 | Gas Laser |
| 4 | Gas bus |
| 5 | Oil and chemical industry |
| 6 | Tested instrumentation |
Ordering Information--Nitrogen CO2 Pressure Regulator
|
R11
|
L
|
B
|
B
|
D
|
G
|
00
|
02
|
P
|
|
Item
|
Body Material
|
Body Hole
|
Inlet Pressure
|
Outlet
Pressure |
Pressure Guage
|
Inlet
size |
Outlet
size |
Mark
|
|
R11
|
L:316
|
A
|
D:3000 psi
|
F:0-500psig
|
G:Mpa guage
|
00:1/4″NPT(F)
|
00:1/4″NPT(F)
|
P:Panel mounting
|
|
B:Brass
|
B
|
E:2200 psi
|
G:0-250psig
|
P:Psig/Bar Guage
|
01:1/4″NPT(M)
|
01:1/4″NPT(M)
|
R:With relief valve
|
|
|
D
|
F:500 psi
|
K:0-50pisg
|
W:No guage
|
23:CGGA330
|
10:1/8″ OD
|
N:Needle calve
|
||
|
G
|
L:0-25psig
|
24:CGGA350
|
11:1/4″ OD
|
D:Diaphregm valve
|
||||
|
J
|
27:CGGA580
|
12:3/8″ OD
|
||||||
|
M
|
28:CGGA660
|
15:6mm OD
|
||||||
|
30:CGGA590
|
16:8mm OD
|
|||||||
|
52:G5/8″-RH(F)
|
||||||||
|
63:W21.8-14H(F)
|
||||||||
|
64:W21.8-14LH(F)
|
RFQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
