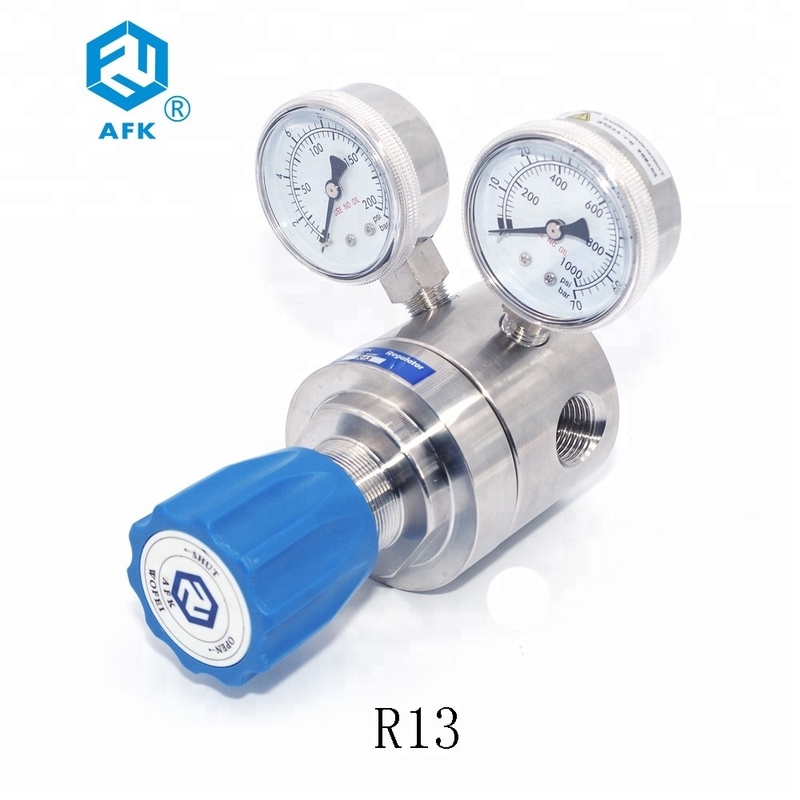

AFK 1000psi Nitrogen High Pressure Regulator 316L Stainless Steel Dual Gauge

Place of Origin China
Brand Name AFK
Certification CE
Model Number R13
Minimum Order Quantity 1
Price Negotiable price
Packaging Details Expotrt Packing
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max Inlet Pressure 500, 1500 Psig Proof Pressure 1.5 Times Of Maximum Rated Presure
Outlet Pressure Range 0~15, 0~25, 0~75, 0~125 Psig Working Temperature -40° F ~+165° F(-40°C+74°C)
Body Material 316L, CV 1.8
Leakage Rate 2*10-8 Atm Cc/sec He Valve Seat PCTFE, PTFE, Vaspel
High Light

PCTFE Stainless Steel Dual Gauge

,

1000psi Nitrogen High Pressure Regulator

,

SS316L Nitrogen High Pressure Regulator

Leave a Message
Product Description

AFK Stainless Steel Dual Gauge Nitrogen High Pressure Regulator 1000psi

Product Technical Parameters

1) Single -stage pressure-reducing Structure.
2) Metal-to-metal diaphragm seal.
3) Body Thread : input & output connection 3/4" NPT ( F )
4) Gauge and safety valve connection: 1/4" NPT ( F )
5) Filter element installed internally
6) Panel mountable or wall mounting available
7)Easy to clean internal structure

Material List

1) Max. Inlet Pressure: 500, 1500 psi

2) Outlet Pressure: 0~15, 0~25, 0~75, 0~125 Psi

3) Proof Pressure: 1.5 times of maximum rated pressure

4) Working Temperature: -40°F-+165°F(-40°C-+74°C)

5) Leakage Rate: 2*10-8 atm cc/sec He

6) CV: 1.8

7) Body Thread: 1/4" NPT ( F )

 AFK 1000psi Nitrogen High Pressure Regulator 316L Stainless Steel Dual Gauge 0

Flow chart

AFK 1000psi Nitrogen High Pressure Regulator 316L Stainless Steel Dual Gauge 1

Ordering and Selection Guide

R13 L B E H G 04 04 P
Item

Body

Materia

Body

hole

Inlet

pressure

Outlet pressure Pressure gauge Inlet size Outlet size Options
R13 L:316 A E:1500psi H:0~125psig G:MPa gauge 04:1/2”NPT(F) 04:1/2”NPT(F) P:Panel mounting
  B:Brass B F:500psi J:0~75psig P:Psig/bar gauge 05:1/2”NPT(M) 05:1/2”NPT(M) R:With relief valve
    D   L:0~25psig W:No gauge 06:3/4”NPT(F) 06:3/4”NPT(F)
    G   M:0~15psig   13:1/2”OD 13:1/2”OD
    J       14:3/4”OD 14:3/4”OD
    M       Other type is available Other type is available



Application Area

AFK 1000psi Nitrogen High Pressure Regulator 316L Stainless Steel Dual Gauge 2



FAQ



Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.



Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.



Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.



Q: How can I get your catalogue and price list?

A: Please let us know your email or contact us from website directly for our catalogue and price list;



Q: Can I negotiate the prices?

A: Yes, we may consider discounts for multiple container load of mixed goods.


Q: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping.

We will offer the charge to you as you requested.
