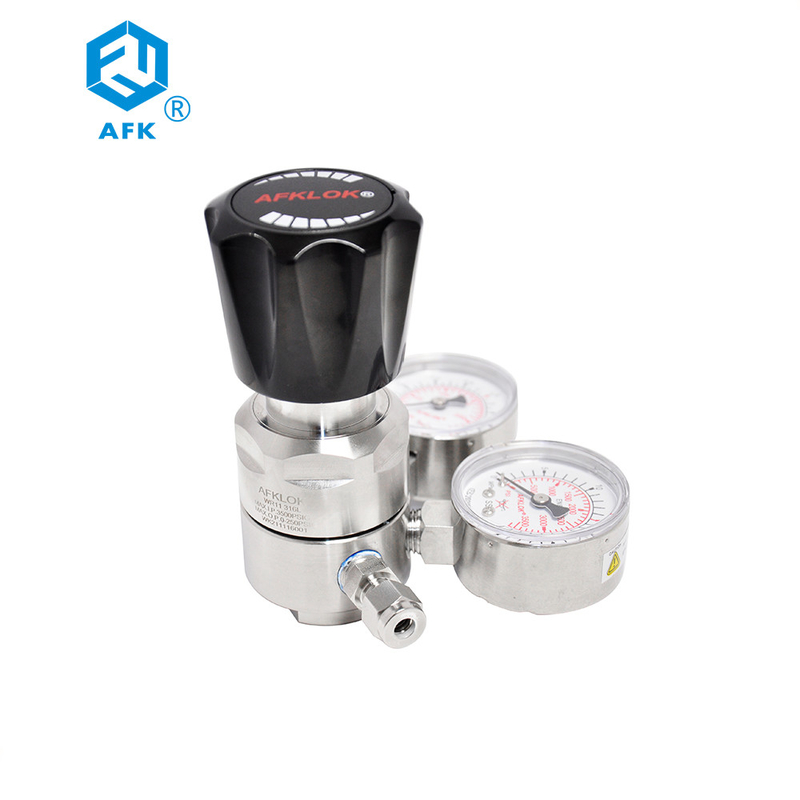

AFK High Flow Stainless Steel Pressure Regulator Oxyen Acetlene Co2 Gas
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Inlet Pressure | 500,3000psi | Outlet Pressure | 25,50,100,250,500 |
|---|---|---|---|
| Inlet Connection | 1/4"NPT F 1/4"NPT M CGA330 CGA350 CGA580 | Outlet Connection | 1/4"NPT F 1/4"NPT M 1/8" OD 1/4" OD 3/8" OD |
| CV | 3500psi Inlet Pressure:0.09,600psi Inlet Pressure:0.2 | Size | 1/4 Female NPT |
| Application | Industrial | Material | Stainless Steel,316 |
| Warranty | 1 Year | Color | Silver |
| High Light | AFK High Flow Stainless Pressure Regulator,3000psi Co2 Gas Pressure Regulator,Co2 Gas Pressure Regulator |
||
Product Description
Features
1. Single stage diaphragm structure
2. Corrugated diaphragm design has excellent sensitivity and service life
3. It can be used for corrosive and toxic gases
4. Install a 20 micron filter element at the inlet
5. Oxygen environment application options are available
The following pictures are for reference only. For details, you need to contact the customer service personnel to select the appropriate connector and place an order. The direct order of this product does not include the connector, but only the valve body and two tables.
SPECIFICATION
1.Max inlet pressure : 500,3000 psig
2.Outlet pressure : 0~25, 0~50, 0~100,0~250,0~500 psig
3.Proof pressure:1.5 times of maximum rated pressure
4.Working tem:-40°F ~+446°F (-40*C~+230°C)
5.Leakage rate:2*10-8 atm cc/sec He
6.Cv :0.08
MATERIAL
1.Body:316L, Brass
2.Roof:316L, Brass
3.Diaphragm:316L
4.Filter mesh:316L(10μ m)
5.Valve seat:PCTFE,PTFE,Vespel
6.Spring loaded:316L
7.Valve disc regulation pole:316L
ORDERING INFORMATION
| R11 | L | B | D | F | G | 00 | 00 | P |
| Item |
Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge | Inlet size | Outlet size | mark |
| R11 | L:316 | A | D:3000 psi | F:0-500 psi | G:MPa gauge | 00:1/4 " NPT (F) | 00: 1/4 " NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250 psi | 01:1/4 " NPT (M) | 01: 1/4 " NPT(M) | N:Needle valve | ||
| D | F:500 psi | l:0-100 psi | P:Psig/bar gauge | 23: CGA330 | 10:1/8 " OD | N:Needle valve | ||
| G | K:0-50 psi | 24: CGA350 | 11:1/4 " OD | D:Diaphragm valve | ||||
| J | L:0-25 psi | W:No gauge | 28: CGA660 | 12:3/8 " OD | ||||
| M | 28: CGA660 | 15:6mm OD | ||||||
| 30: CGA590 | 16:8mm OD | |||||||
| 52: G5/8 "-RH(F) | ||||||||
| 63: W21.8-14H(F) | ||||||||
| 64: W21.8-14LH(F) |
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
