Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R41
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Special packaging
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs
After-sales Service Provided: |
Online Support |
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
Color: |
Silver |
Cv: |
0.09 |
Product Name: |

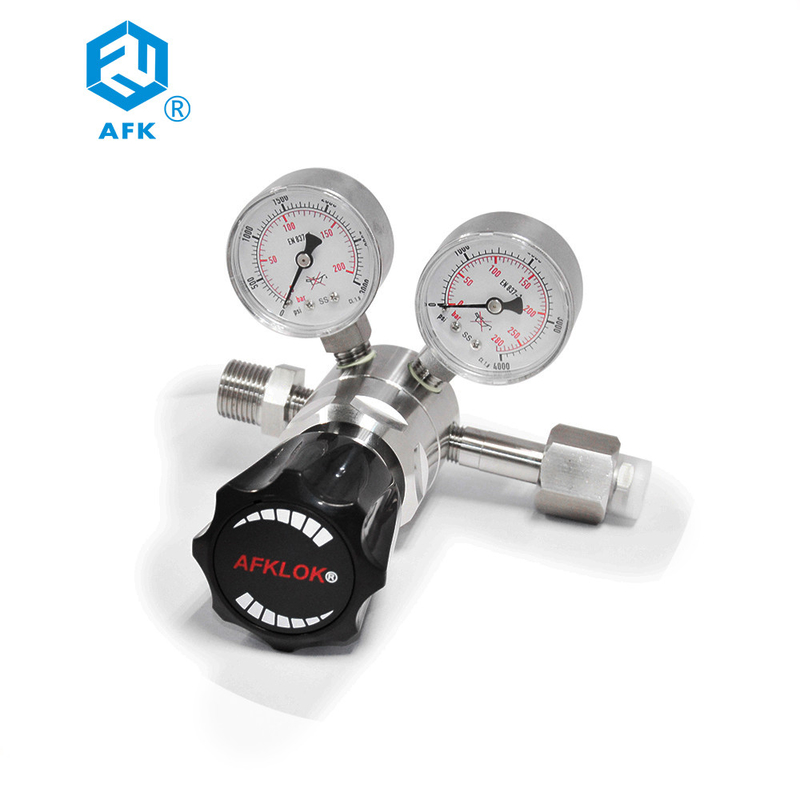

R41 Pressure Regulator |
Maximum Inlet Pressure: |
4500PSI OR 6000PSI |
Outlet Pressure: |
0-1500PSI,0-3000PSI |
Inlet And Outlet Connection: |
1/4" F NPT |
After-sales Service Provided: |
Online Support |
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
Color: |
Silver |
Cv: |
0.09 |
Product Name: |
R41 Pressure Regulator |
Maximum Inlet Pressure: |
4500PSI OR 6000PSI |
Outlet Pressure: |
0-1500PSI,0-3000PSI |
Inlet And Outlet Connection: |
1/4" F NPT |
Features
1. Single stage piston sensing structure
2. Larger outlet pressure adjustment range
3. It can be used for standard gas and non corrosive gas
4. Install a 20 micron filter element at the inlet
5. Oxygen environment application options can be provided
Technical Data
1. Maximum inlet pressure: 4500psi or 6000PSI
2. Outlet pressure range: 0 ~ 1500,0 ~ 3000
3. Material of internal components:
Valve seat: PCTFE
Piston: 316L
O-ring: FKM
Filter element: 316L
4. Working temperature: - 26 ℃ ~ + 74 ℃ (- 15 ℉ ~ + 165 ℉)
5. Leakage rate (helium): Inside: no visible bubbles External: no visible bubbles
6. Flow coefficient (CV): 0.09
7. Parent port:
Inlet: 1 / 4NPT
Outlet: 1 / 4NPT
Pressure gauge port: 1 / 4NPT
Ordering Information
| R41 | L | B | B | D | G | 00 | 00 | P |
| Item | Body Materia | Body Hole | Inlet Pressure | Outlet Pressure | Pressure Gauge | Inlet Size | Outlet Size | Options |
| R41 | L:316 | A | B:6000psig | D:0~3000psig | G:MPa gauge | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | D:3000psig | E:0~1500psig | P:Psig/bar gauge | 00:1/4″NPT(M) | 00:1/4″NPT(M) | ||
| D | F:0~500psig | W:No gauge | 10:1/8″OD | 10:1/8″OD | ||||
| G | G:0~250psig | 11:1/4″OD | 11:1/4″OD | |||||
| J | 12:3/8″OD | 12:3/8″OD | ||||||
| M | 15:6mm”OD | 15:6mm”OD | ||||||
| 16:8mm”OD | 16:8mm”OD |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
