Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R13
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Special packaging
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs
Product Name: |
R13 Gas Pressure Regulator |
Application: |
Industrial |
Material: |
Stainless Steel |
Suitable Gas: |
Co2/Nitrogen/Helium/Oxygen/air |
Type: |
Single Stage |
Name: |
Oxygen Gas Cylinder Regulator |
Inlet And Outlet Connection: |
3/4"F NPT |
Inlet Pressure Range: |
250psi |
Outlet Pressure Range: |
160psi |
MOQ: |
1 Pcs |
Cv: |
1.8 |
Product Name: |
R13 Gas Pressure Regulator |
Application: |
Industrial |
Material: |
Stainless Steel |
Suitable Gas: |
Co2/Nitrogen/Helium/Oxygen/air |
Type: |
Single Stage |
Name: |
Oxygen Gas Cylinder Regulator |
Inlet And Outlet Connection: |
3/4"F NPT |
Inlet Pressure Range: |
250psi |
Outlet Pressure Range: |
160psi |
MOQ: |
1 Pcs |
Cv: |
1.8 |

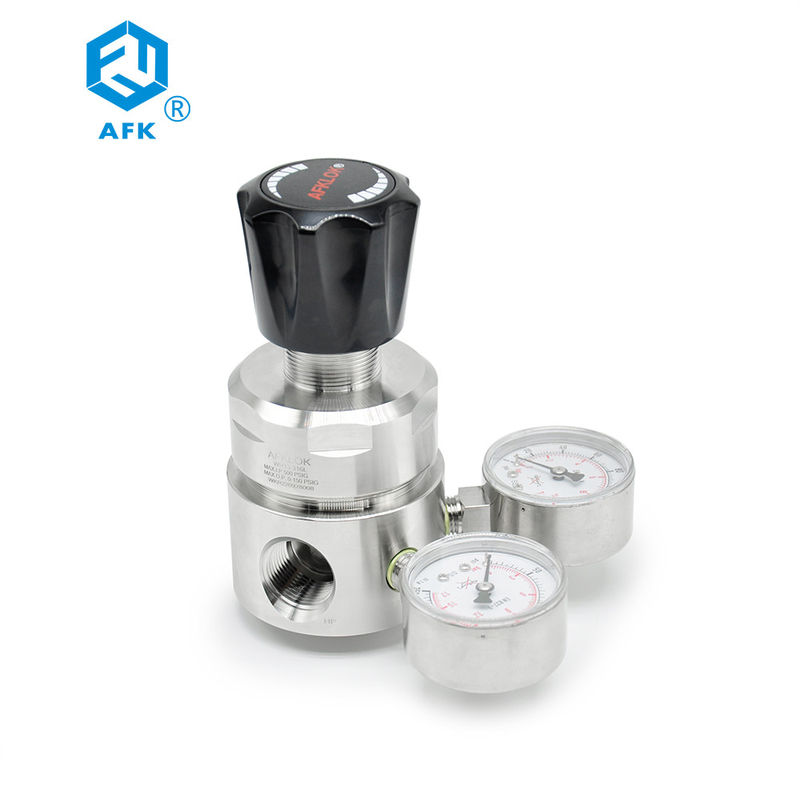

Product Description of Gas Cylinder Pressure Regulator
Features of Stainless Steel Pressure Regulator
Single-stage diaphragm structure
Corrugated diaphragm design for excellent sensitivity
Suitable for corrosive and toxic gases
20μm filter element installed at inlet
Oxygen environment options are available
Specification of Gas Cylinder Pressure Regulator
Technical Data of Stainless Steel Pressure Regulator
Max inlet pressure:500psi
outlet pressure range:0~15,0~30,0~75,0~150
component material:
seat:PCTFE
diaphragm:hastelloy
filter mesh:316L
working temperature:-40℃~+74℃(-40℉~+165℉)
leak rate(helium):
internal:bubble-tight
external:≤1x10-9mbar l/s
flow coefficient(CV):1.8
body thread:
inlet port:3/4NPT
outlet port:3/4NPT
pressure gauge port:1/4NPT
| Ordering Information | ||||||||
| R13 | L | B | E | H | G | 04 | 04 | P |
| Item |
Body Materia |
Body hole |
Inlet pressure |
Outlet pressure | Pressure gauge | Inlet size | Outlet size | Options |
| R13 | L:316 | A | E:1500psi | H:0~125psig | G:MPa gauge | 04:1/2”NPT(F) | 04:1/2”NPT(F) | P:Panel mounting |
| B:Brass | B | F:500psi | J:0~75psig | P:Psig/bar gauge | 05:1/2”NPT(M) | 05:1/2”NPT(M) | R:With relief valve | |
| D | L:0~25psig | W:No gauge | 06:3/4”NPT(F) | 06:3/4”NPT(F) | ||||
| G | M:0~15psig | 13:1/2”OD | 13:1/2”OD | |||||
| J | 14:3/4”OD | 14:3/4”OD | ||||||
| M | Other type is available | Other type is available | ||||||
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
