Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural

Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural
Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural
Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural

Large Image :  Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Special packaging
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs

Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural

Description
Product Name: Low Pressure Regulator Valve Application: Industrial
Material: Stainless Steel Certificate: CE ISO
Outlet Pressure Range: 160PSI Inlet And Outlet Connection: 1/4"NPT F
Gauge: Back Connection Body Ports: 3
Mounting Method: Panel Mounting Cv: 0.08
High Light:

Low Pressure Stainless Steel Gas Regulator

,

Air Nitrogen Stainless Steel Pressure Regulator

,

160PSI Stainless Steel Pressure Regulator

Product Description of Single Stage Pressure Regulator

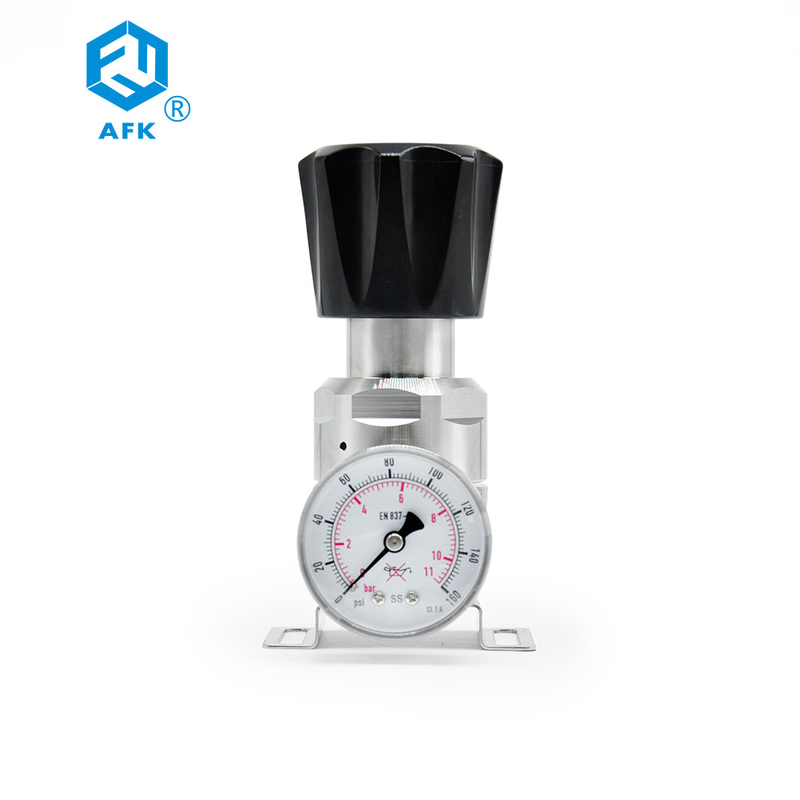

This is a pressure gauge back mounted, according to the needs of customers, so as to change its installation, this product with a small panel, with small screws to facilitate the fixing, if you have installation requirements before the order and customer service to communicate well Oh.

Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural 0

Function
1. The gas stored in the cylinder is depressurized by the pressure reducer to reach the required working pressure.
2. The high and low pressure gauges of the pressure reducer indicate the high pressure in the bottle and the working pressure after decompression.
3. The pressure of the gas in the pressure stabilizing cylinder decreases gradually with the consumption of the gas, while the working pressure of the gas is required to be relatively stable in gas welding and gas cutting. The stainless steel pressure reducer can ensure the stable output of gas working pressure, so that the working pressure delivered from the low-pressure chamber will not change with the change of high-pressure gas pressure in the cylinder.



Specification of Single Stage Pressure Regulator

Low Pressure Stainless Steel Gas Regulator Air Nitrogen Propane Natural 1



Material List of adjusting propane regulator
1 Body SS316L, brass, nickel plated brass ( Weigh :0.9kg)
2 Cover SS316L, brass, nickel plated brass
3 Diaphragm SS316L
4 Strainer SS316L(10um)
5 Valve Seat PCTFE,PTFE,Vespel
6 Spring SS316L
7 Plunger Valve Core SS316L
Technical Data of adjusting propane regulator
1 Maximun Input Pressure 500,3000 psig
2 Output Pressure Range 0~25, 0~50, 0~100, 0~250, 0~500 psig
3 Safety Testing Pressure 1.5 times of maximum input pressure
4 Working Temperature -40°F~ +165°F (-40°C~ +74°C )
5 Leakage Rate 2×10-8 atm cc/sec He
6 CV Value 0.08

ORDERING INFORMATION of Single Stage Pressure Regulator

R11 L B D F G 00 00 P
Item

Body

Materia

Body Hole

Inlet

pressure

Outlet

pressure

Pressure gauge Inlet size Outlet size mark
R11 L:316 A D:3000 psi F:0-500 psi G:MPa gauge 00:1/4 " NPT (F) 00: 1/4 " NPT(F) P:Panel mounting
  B:Brass B E:2200 psi G:0-250 psi   01:1/4 " NPT (M) 01: 1/4 " NPT(M) N:Needle valve
    D F:500 psi l:0-100 psi P:Psig/bar gauge 23: CGA330 10:1/8 " OD N:Needle valve
    G   K:0-50 psi   24: CGA350 11:1/4 " OD D:Diaphragm valve
    J   L:0-25 psi W:No gauge 28: CGA660 12:3/8 " OD
    M       28: CGA660 15:6mm OD
            30: CGA590 16:8mm OD
            52: G5/8 "-RH(F)
            63: W21.8-14H(F)
            64: W21.8-14LH(F)



FAQ

Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
Q. How do I order?
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A. We have CE certificate.
Q. What materials do you have?
A. aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A.3000psi (about 206bar)
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also
available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A. Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
