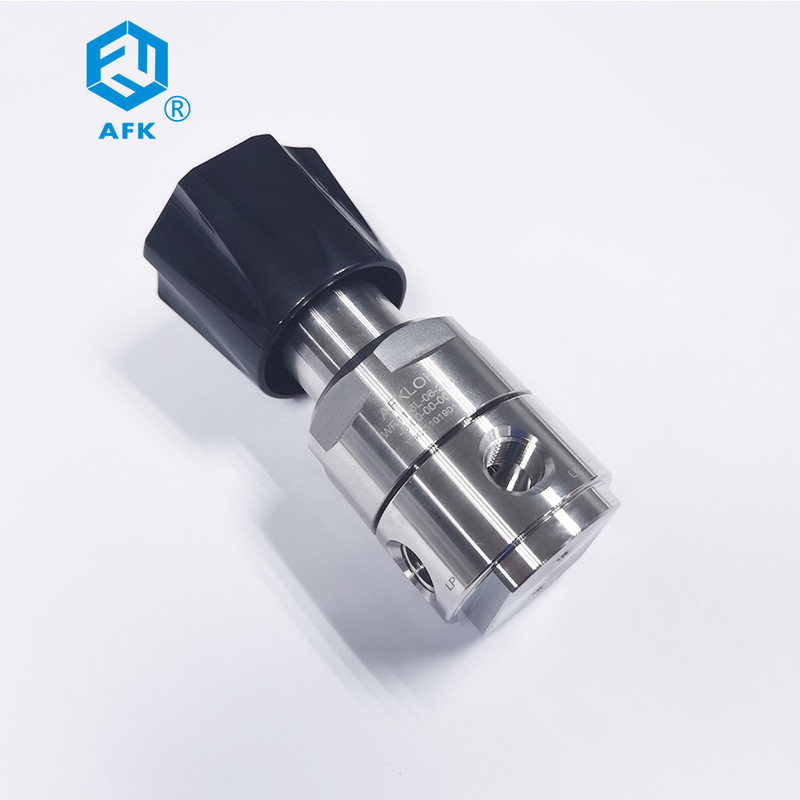

High Pressure Adjustable Gas Pressure Regulator PCTFE / PTFE / Vespel Seat Single Stage
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Gas Regulator High Pressure Adjustable Gas Pressure Regulator | Weight | 0.9 |
|---|---|---|---|
| Material | Stainless Steel,316 | Warranty | 1 Year |
| Application | Industry Equipment | Working Temperature | -40℃~+74℃(-40℉~+165℉) |
| Seat | PCTFE,PTFE,Vespel | CV | 0.20,0.09 |
| Package Size | 17cm*17cm*17cm | Structure | Single Stage Pressure Regulator |
| Max Inlet Pressure | 600.3500PSI | Outlet Pressure | 0~30,0~60,0~100,0~150,0~250,0~500PSI |
| Thread | NPT "1/4 (F) | ||
| High Light | Adjustable Gas Pressure Regulator,PCTFE Seat Gas Pressure Regulator,PCTFE Seat High Pressure Regulator |
||
Product Description
Description Of Gas Regulator High Pressure Adjustable Gas Pressure Regulator
Gas Regulator High Pressure Adjustable Gas Pressure Regulator,Single-stage diaphragm pressure reduction structure, stainless steel diaphragm pressure transmission, stable output pressure.This Gas Regulator High Pressure Adjustable Gas Pressure Regulator is a universal pressure reducing valve with a wide range of uses, which can be used in semiconductors, laboratories, chemical analysis, instrumentation,gas chromatograph,gas laser,gas bus,oil and chemical industrey,tesed instrumentation etc. Can be used for corrosive and toxic gases.Pressure regulator an economical and ideal choice for regulating gas or liquid pressure. 316L stainless steel body, stainless steel valve stem and adjustment handle avoid environmental corrosion. The surface finish inside the body is high. You can choose a variety of different valve seat materials, a variety of inner diameters and a variety of pressure control ranges, and the stainless steel diaphragm provides reliability in pressure and flow control. This high pressure regulator has excellent accuracy, sensitivity and stable pressure set point.
Specification Of Gas Regulator High Pressure Adjustable Gas Pressure Regulator
| Product name | Gas Regulator High Pressure Adjustable Gas Pressure Regulator |
| Material | Stainless Steel 316L |
| Max Inlet Pressure | 600,3500PSI |
| Outlet pressure | 0~30,0~60,0~100,0~150,0~250,0~500PSI |
| Thread | NPT "1/4 (F) |
| CV | 0.20,0.09 |
| Seat | PCTFE,PTFE,Vespel |
| Package size | 17cm*17cm*17cm |
| Working Temperature | -40℃~+74℃(-40℉~+165℉) |
| Structure | Single Stage Pressure Regulator |
| Ports | standard4 ports, can customize2 ports, 3 ports, 5 ports,6 ports |
| Structure | diaphragm, piston, one stage |
| Mounting method | Panel-mounted, wall-mounted |
| Customised available with | Panels, safety valves, needle valves |
Features of Gas Regulator High Pressure Adjustable Gas Pressure Regulator |
Material of Gas Regulator High Pressure Adjustable Gas Pressure Regulator |
||
| 1 | Single-stage diaphragm structure | 1 | Body: 316L/SS304 |
| 2 | Corrugated diaphragm design for excellent sensitivity and cycle life | 2 | Seat: PCTFE,PTFE, Vespel |
| 3 | Suitable for corrosive and toxic gases | 3 | Diaphragm: 316L |
| 4 | 20 μm filter element installed at inlet | 4 | Filrer mesh:316L(10μm) |
| 5 | Oxygen environment options are available | 5 | spring loaded:316L |
| 6 | valve disc regulatortion pole:316L | ||
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
