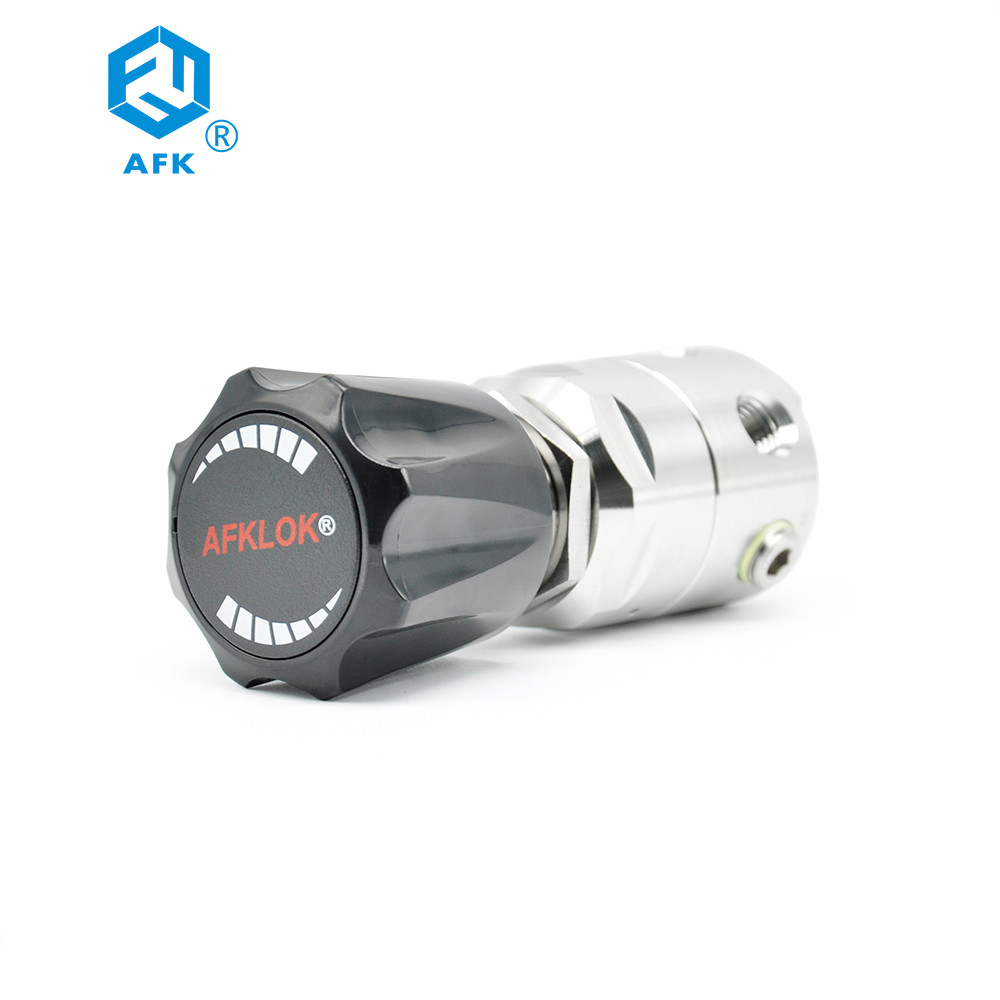

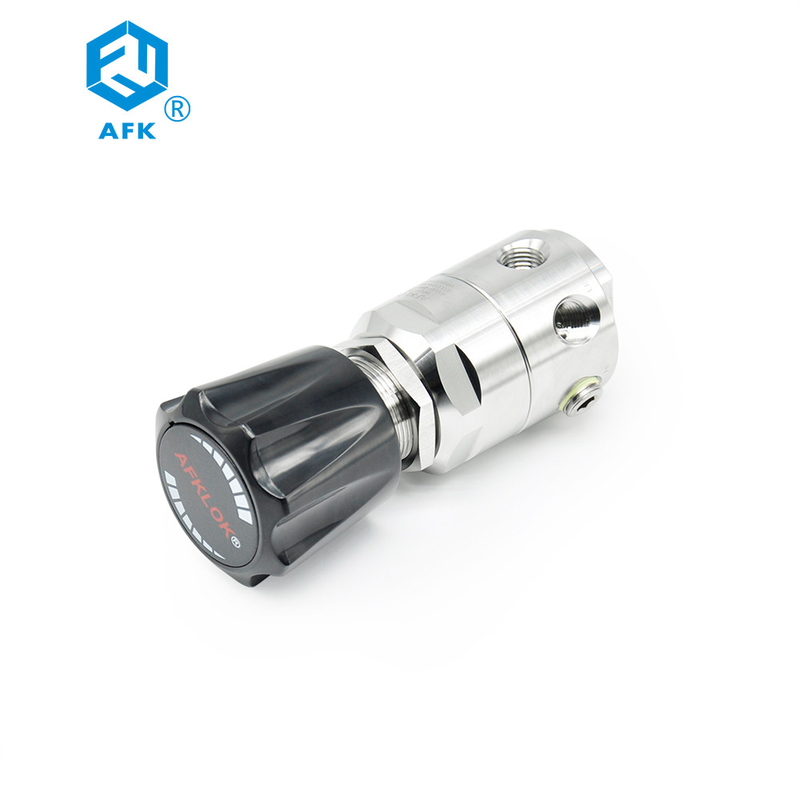

Stainless Steel Pressure Reducing Valve High Pressure Propane Regulator Flow Control

Place of Origin China
Brand Name AFK
Certification CE
Model Number R41
Minimum Order Quantity 1
Price Negotiable
Packaging Details Special packaging
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Years Product Name Stainless Steel Pressure Reducing Valve High Pressure Propane Regulator Flow Control Valve
Material Stainless Steel Max Inlet Pressure 3000,6000PSI
Outlet Pressure 0~250,0~500,0~1500,0~3000psi CV 0.06
Thread 1/4NPT Female Application Laboratory, Industrial, Semiconductor
Packaging 17cm*17cm*17cm MOQ 1pcs
Weight 0.9kg
High Light

Stainless Steel Pressure Reducing Valve

,

1/4NPT Pressure Reducing Valve

,

Flow Control High Pressure Propane Regulator

Leave a Message
Product Description

Description Of Stainless Steel Pressure Reducing Valve High Pressure Propane Regulator Flow Control Valve

Stainless Steel Pressure Reducing Valve High Pressure Propane Regulator Flow Control Valve,Single-stage diaphragm pressure reduction structure, stainless steeldiaphragm pressure transmission, stable output pressure.

This Stainless Steel Pressure Reducing Valve High Pressure Propane Regulator Flow Control Valve with a wide range of uses, which can be used in semiconductors, laboratories, chemical analysis,instrumentation,gas chromatograph,gas laser,gas bus,oil and chemical industrey,tesed instrumentation etc.
Can be used for corrosive and toxic gases.Pressure regulator an economical and ideal choice for regulating gas or liquid pressure. 316L stainless steel body, stainless steel valve stem and adjustment handle avoid environmental corrosion. The surface finish inside the body is high. You can choose a variety of different valve seat materials, a variety of inner diameters and a variety of pressure control ranges, and the stainless steel diaphragm provides reliability in pressure and flow control. This high pressure regulator has excellent accuracy, sensitivity and stable pressure set point.

Stainless Steel Pressure Reducing Valve High Pressure Propane Regulator Flow Control 0

Design Features of Stainless Steel Pressure Reducing Valve High Pressure Propane Regulator Flow Control Valve
1 Piston pressure-reducing structure
2 Body thread:1/4"NPT(F)
3 Filter element installed internally
4 Panel mounting and wall mounting available



Material of Stainless Steel Pressure Reducing Valve High Pressure Propane Regulator Flow Control Valve
1 Body 316L
2 Bonnet 316L
3 Seat PCTFE
4 Spring 316L
5 Stem 316L
6 Ring Fluoroelastomer
7 Strainer 316L(10μm)



Product name High Quality Gas Pressure Regulator Valve
Material Stainless Steel
Max Inlet Pressure 3000,6000PSI
Outlet pressure 0~250,0~500,0~1500,0~3000psi
cv 0.06
Thread 1/4NPT Female
Application Laboratory, Industrial, Semiconductor
Packaging 17cm*17cm*17cm
MOQ 1pcs
Weight 0.9kg
Leakage rate bubble-tight testing
Working tem -40℉~+446℉(-40℃~+230℃)



Stainless Steel Pressure Reducing Valve High Pressure Propane Regulator Flow Control 1

Cleaning Technics

Standard(KW-BA)

The welded fittings are cleaned in accordance with our standard cleaning and packaging specifications. No suffixes need to be added when ordering.

Oxygen Cleaning(KW - O2)

Specifications for cleaning and packaging of products for oxygen environments are available. This meets ASTM G93 Class C cleanliness requirements. When ordering, add -O2 to the end of the order number.

Stainless Steel Pressure Reducing Valve High Pressure Propane Regulator Flow Control 2

Stainless Steel Pressure Reducing Valve High Pressure Propane Regulator Flow Control 3
