220V Electric Drain Valve , High Pressure Hydraulic Solenoid Valve Shutoff Structure

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Material | Brass | Temperature Of Media | Medium Temperature |
---|---|---|---|
Port Size | 1/2" | Structure | Shutoff |
Product Name | Electronic Drain Valve | Medium Temperature | -5~60℃ |
Timer Interval(on) | 0-10second | ||
High Light | water control solenoid valve,water control solenoid valve |
Product Description

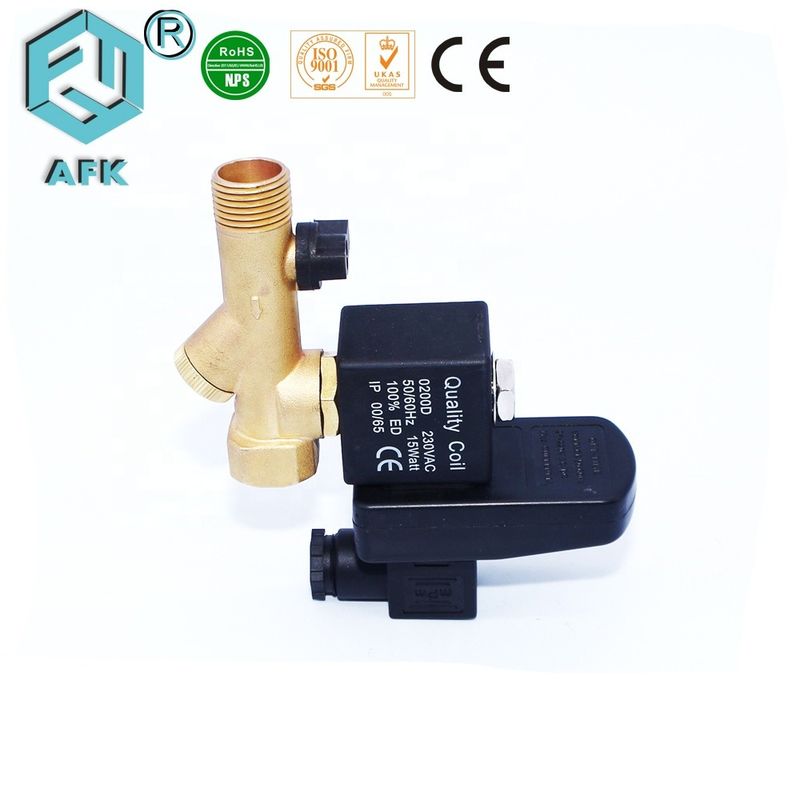

Brass Automatic High Pressure 1/2 inch Electric Drain Valve 220v
Code Option:
- Thread Option: BSP
- Standard Voltage Option: DC24V, AC220V
- Material Option: Brass
- Oil Seal Option:NBR,EPDM,VITON
Description:
- Maximum working pressure:1.6MPa
- Automatic; free maintenance;
- Waterproof(IP65), Shake-proof, Energy-saving, Environment-friendly;
- Forging brass valve, flow aperture of 4 mm ;
- Easy installation;
- Working Voltage: DC 24V; AC220V
Specication of the Timer:
- Time interval ( OFF ) : 0.5--45 minutes
- Discharge time ( ON ) : 0.5--10 seconds
- Manual test button : micro switch
- Power supply voltage : 24-230V AC / DC 50 / 60Hz (Voltage 380VAC special can order)
- The largest current consumption : 4mA
- Ambient temperature : -40 °C to 60 °C
- Water proof grade : IP65
- Shell material : Flame retardant ABS plastic
- Electrical connection : DIN43650A
- Indicator lamp : LED indicating
