Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK

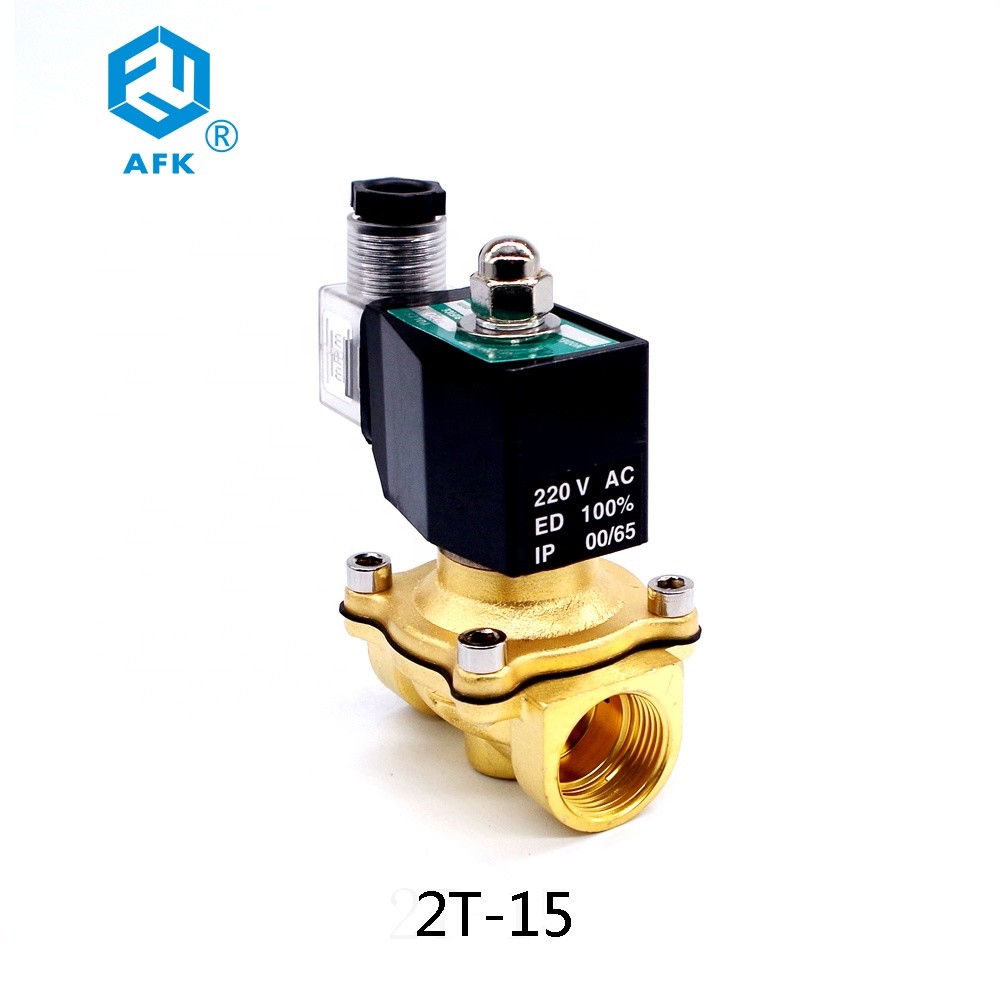

Model Number: 2T-15
Payment & Shipping Terms
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: White box + Export packing
Supply Ability: 30000 Set/Sets per Week
Application: |
Tube & Pipe |
Material: |
Brass |
Temperature Of Media: |
Low Temperature |
Pressure: |
Low Pressure |
Power: |
Solenoid |
Media: |
Gas |
Port Size: |
1/2" |
Structure: |
Pilot |
Working Pressure: |
0~1Mpa |
Applicable Medium: |
Gas |
Medium Temperature: |
-5~60℃ |
Voltage: |
AC220V AC110V DC12V DC24V |
Type: |
Normally Closed |
Standard Or Nonstandard: |
Standard |
Port: |
ShenZhen |
Application: |
Tube & Pipe |
Material: |
Brass |
Temperature Of Media: |
Low Temperature |
Pressure: |
Low Pressure |
Power: |
Solenoid |
Media: |
Gas |
Port Size: |
1/2" |
Structure: |
Pilot |
Working Pressure: |
0~1Mpa |
Applicable Medium: |
Gas |
Medium Temperature: |
-5~60℃ |
Voltage: |
AC220V AC110V DC12V DC24V |
Type: |
Normally Closed |
Standard Or Nonstandard: |
Standard |
Port: |
ShenZhen |
One-time open valve connection the opening structure, without pressure, seal with high performance, achieve leakage.
Product use
On the gas natural gas combustion automatic control media in the pipeline can also control of other fluid in low voltage system.
|
2T series gas solenoid valve (Option)
|
|||||
|
Model NO.
|
A
|
B
|
C
|
Port size
|
Material
|
|
2T-15
|
62
|
55
|
102
|
G1/2'
|
Brass
|
|
2T-20
|
67
|
55
|
113
|
G3/4'
|
|
|
2T-25
|
86
|
73
|
117
|
G1'
|
|
|
2T-32
|
90
|
77
|
130
|
G1 1/4"
|
|
|
2T-40
|
106
|
67
|
164
|
G1 1/2"
|
|
|
2T-50
|
123
|
93
|
176
|
G2"
|
|
|
2T-15B
|
69
|
57
|
107
|
G1/2"
|
Stainless steel
|
|
2T-20B
|
73
|
57
|
115
|
G3/4"
|
|
|
2T-25B
|
98
|
77
|
125
|
G1"
|
|
|
2T-32B
|
115
|
87
|
153
|
G1 1/4"
|
|
|
2T-40B
|
121
|
94
|
162
|
G1 1/2"
|
|
|
2T-50B
|
168
|
123
|
187
|
G2"
|
|
|
2T-15BF
|
107
|
95
|
150
|
DN15
|
Stainless steel material flange connection
|
|
2T-20BF
|
107
|
102
|
150
|
DN20
|
|
|
2T-25BF
|
138
|
108
|
165
|
DN25
|
|
|
2T-32BF
|
149
|
131
|
200
|
DN32
|
|
|
2T-40BF
|
160
|
141
|
200
|
DN40
|
|
|
2T-50BF
|
186
|
160
|
240
|
DN50
|
|
Model: 2W-500-50B
Size: 2"
Orifice size: 50mm
Thread: G
Type: Normally closed
Material: Stainless Steel 304
Voltage: AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V
Model: 2W-250-25
Size: 1"
Orifice size: 25 mm
Thread: G
Type: Normally closed
Material: Brass
Voltage: AC220V/AC110V/24V/DC12V
Type: With timer
Model: DN-80F
Size: 3"
Orifice size: 80 mm
Type: Normally closed
Material: Iron casting
Voltage: AC220V/AC110V/24V/DC12V
Connection: Flange
Model: 2W-20K
Size: 3/4"
Orifice size: 20 mm
Thread: G
Type: Normally Open
Material: Brass
Voltage: AC220V/AC110V/24V/DC12V
