Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: 2T-15B
Payment & Shipping Terms
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: White box + Export packing
Payment Terms: L/C, Western Union, MoneyGram
Supply Ability: 30000 Set/Sets per Week
Application: |
Tube & Pipe |
Media: |
Gas |
Port Size: |
1/2" |
Working Pressure: |
0~1Mpa |
Medium Temperature: |
-5~60℃ |
Application: |
Tube & Pipe |
Media: |
Gas |
Port Size: |
1/2" |
Working Pressure: |
0~1Mpa |
Medium Temperature: |
-5~60℃ |
| Brand Name | Afklok |
| Structure | Shutoff |
| Material | Brass |
| Pressure | Low Pressure |
| Power | Solenoid |
| Model Number | 2T |
| Standard or Nonstandard | Standard |
| Temperature of Media | High Temperature |
| Media | Water |
| Port Size | 1" |
| Thread Type | BSP |

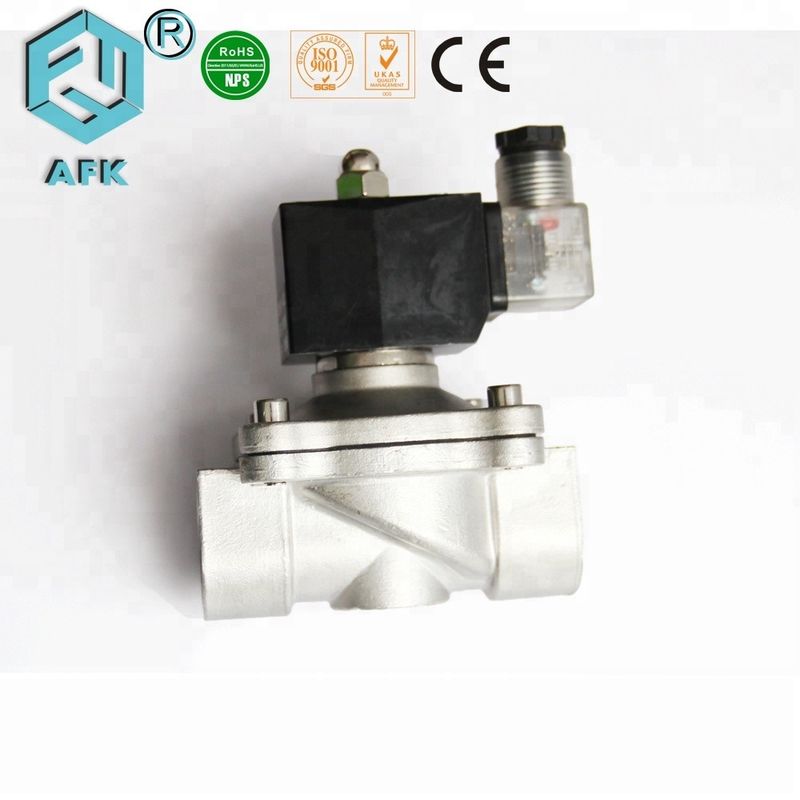

2T series gas solenoid valve (Option) | |||||
Model NO. | A | B | C | Port size | Material |

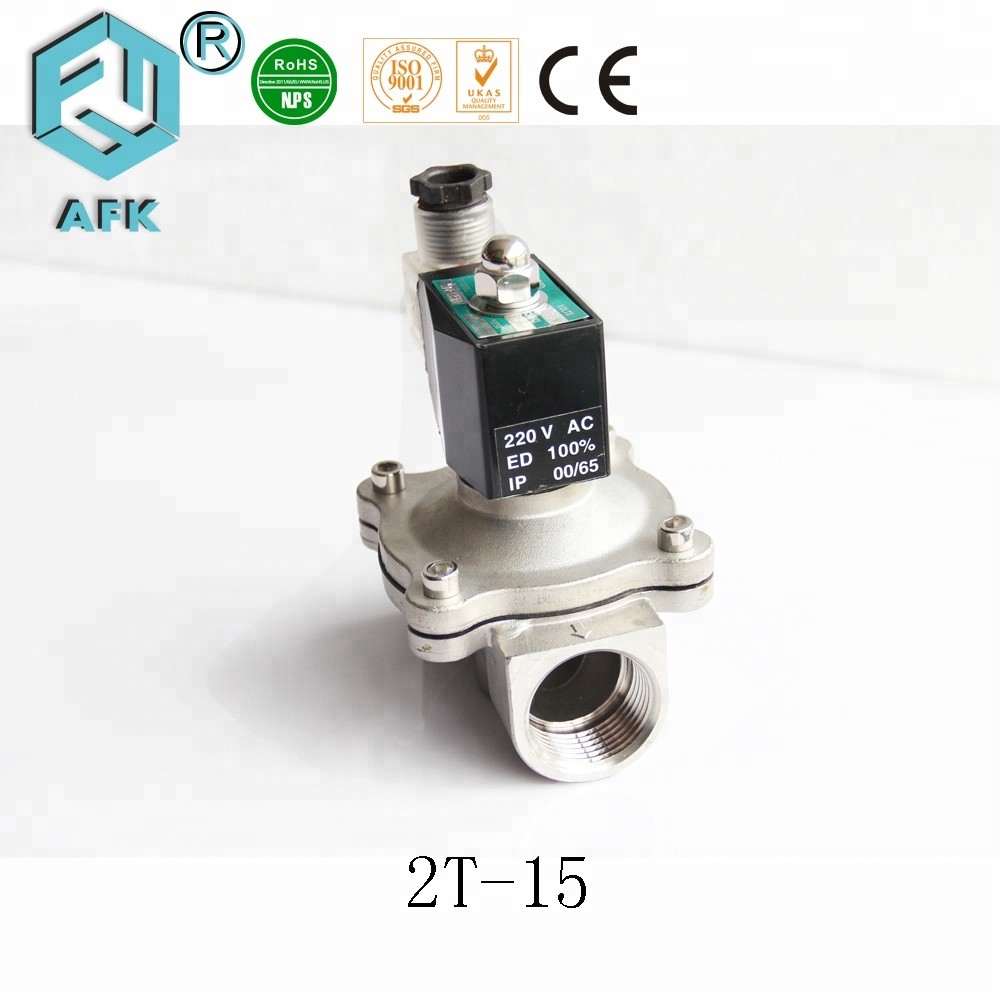

2T-15 | 62 | 55 | 102 | G1/2' | Brass |
2T-20 | 67 | 55 | 113 | G3/4' | |
2T-25 | 86 | 73 | 117 | G1' | |
2T-32 | 90 | 77 | 130 | G1 1/4" | |
2T-40 | 106 | 67 | 164 | G1 1/2" | |
2T-50 | 123 | 93 | 176 | G2" | |
2T-15B | 69 | 57 | 107 | G1/2" | Stainless steel |
2T-20B | 73 | 57 | 115 | G3/4" | |
2T-25B | 98 | 77 | 125 | G1" | |
2T-32B | 115 | 87 | 153 | G1 1/4" | |
2T-40B | 121 | 94 | 162 | G1 1/2" | |
2T-50B | 168 | 123 | 187 | G2" | |
2T-15BF | 107 | 95 | 150 | DN15 | Stainless steel material flange connection |
2T-20BF | 107 | 102 | 150 | DN20 | |
2T-25BF | 138 | 108 | 165 | DN25 | |
2T-32BF | 149 | 131 | 200 | DN32 | |
2T-40BF | 160 | 141 | 200 | DN40 | |
2T-50BF | 186 | 160 | 240 | DN50 | |
