AFK Steam Solenoid Valve Normally Closed Applied To Liquid Gas Steam

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: AFK

Certification: CE

Model Number: 2L-40

Payment & Shipping Terms

Minimum Order Quantity: 1 - 9 Sets

Price: Negotiable

Packaging Details: White box + Export packing

Supply Ability: 30000 Set/Sets per Week

Get Best Price
Contact Now
Specifications
Highlight:

steam control valve

,

steam rated valves

Application:
General
Material:
Brass
Temperature Of Media:
Medium Temperature
Pressure:
Low Pressure
Port Size:
1/8" 1/4" 3/8" 1/2"
Maximum Working Pressure:
1.6Mpa
Operating Pressure Range:
0.2-1.6Mpa
Application:
General
Material:
Brass
Temperature Of Media:
Medium Temperature
Pressure:
Low Pressure
Port Size:
1/8" 1/4" 3/8" 1/2"
Maximum Working Pressure:
1.6Mpa
Operating Pressure Range:
0.2-1.6Mpa
Description

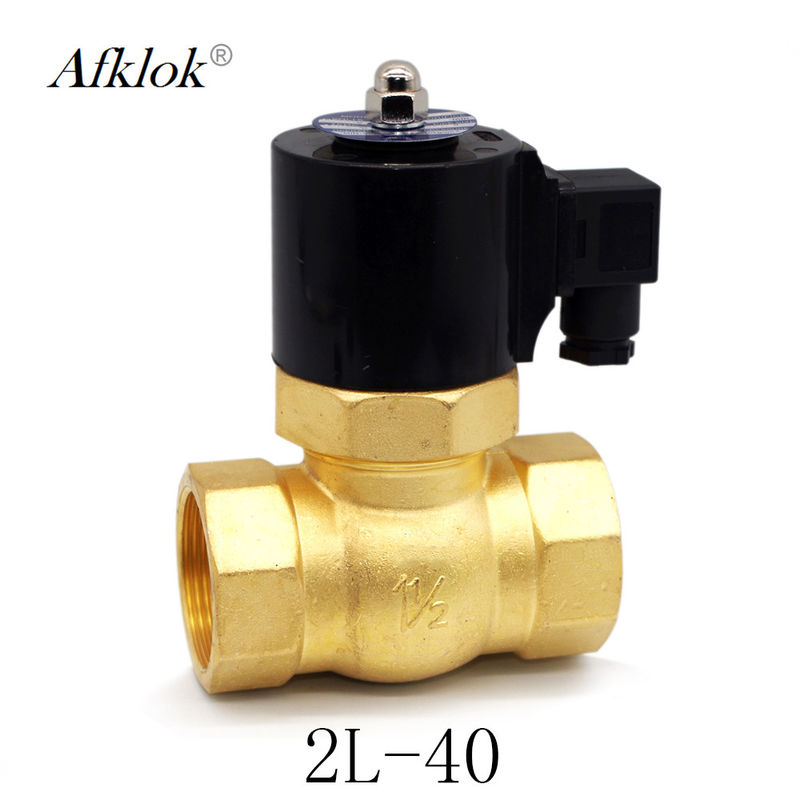

AFK Steam Solenoid Valve Normally Closed Applied To Liquid Gas Steam

High Temperature 1 1/2" Steam Solenoid Valve 110V AC

1.Model: 2L-40
2.Size: 1-1/2 inch
3.Thread: G
4.Operation: Pilot type
5.Operating pressure range: 0.2-1.6Mpa
6.Insulation grade: B class
7.Power: 26W
8.Material: Brass
9.Medium: Liquid gas steam <20CST
10.Response time: Open≤2 second ≤3 second
11.Voltage: AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V

Characteristic

1.The top structure of automatic compensation sealing type greatly extend the service life of the valve.

2.Design of balance piston clearance greatly enhances the reliability of the valve at high temperature.

3.Install way: Media flow direction and on the arrow consistent.

The coil vertically upward, the working media clean and no particle impurities.


Structure Parameters
AFK Steam Solenoid Valve Normally Closed Applied To Liquid Gas Steam 0
