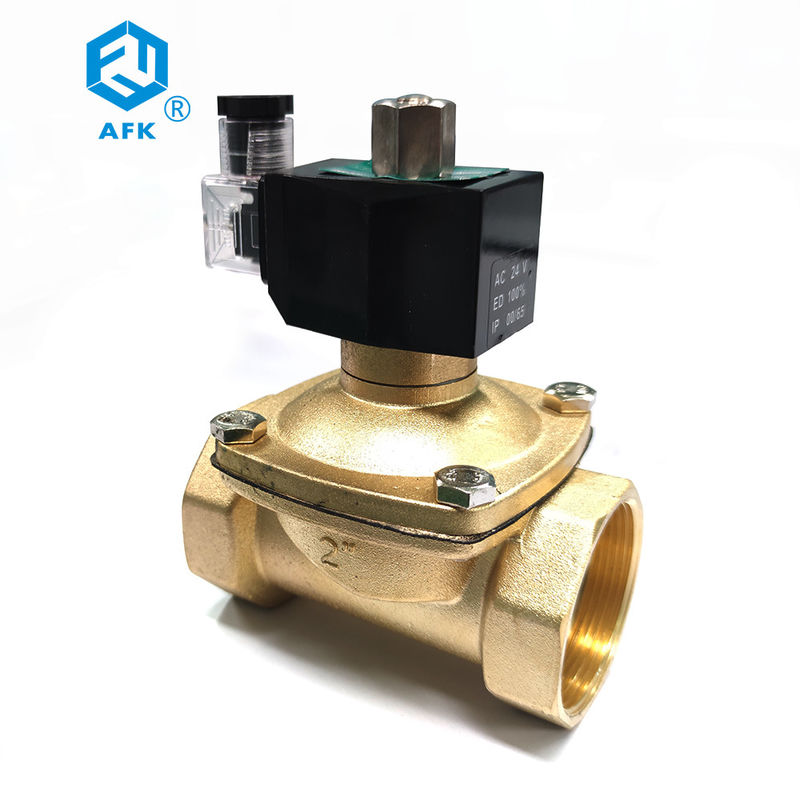

Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: 2W-50K
Payment & Shipping Terms
Minimum Order Quantity: 1-5
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PC
Power: |
Solenoid |
Media: |
Gas |
Material: |
Brass |
Product Name: |
Solenoid Valve |
Voltage: |
DC12V/DC24V/AC24V/AC110V/AC220V,220V AC/24V DC/12V DC |
Medium: |
Gas |
Power: |
Solenoid |
Media: |
Gas |
Material: |
Brass |
Product Name: |
Solenoid Valve |
Voltage: |
DC12V/DC24V/AC24V/AC110V/AC220V,220V AC/24V DC/12V DC |
Medium: |
Gas |
Design Features
1. Pilot diaphragm type
2. Fit for air, water, oil , the neutral gas liquid.
3.Normally open
4.Pipe size from 1/8′ to 2′ .
5.Orifice size from 2.5mm to 50mm
5. Service voltage : AC380V, 220V,110V,24V DC24,12V
6.Thread connnection : NPT, G thread
7.Large flow.
| Model Number | 2W-06K | 2W-08K | 2W-10K | 2W-15K | 2W-20K | 2W-25K | 2W-32K | 2W-40K | 2W-50K |
| Pipe Size | 1/8″ | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ |
| Orifice | 2.5mm | 4mm | 16mm | 16mm | 20mm | 25mm | 32mm | 40mm | 50mm |
| Fluid | Air water oil, the neutral gasliquid | Service voltage | AC110V/220V/DC24V(50/60Hz) | ||||||
| Operating | Pilot type | Type | Normally open | ||||||
| Body material | Brass | Working pressure | (water, air): 1-10kgf/cm2 | ||||||
| Material of seal | Standard: Below 80℃ fluid temperature use NBR, below 150℃ use fluororubber | ||||||||
