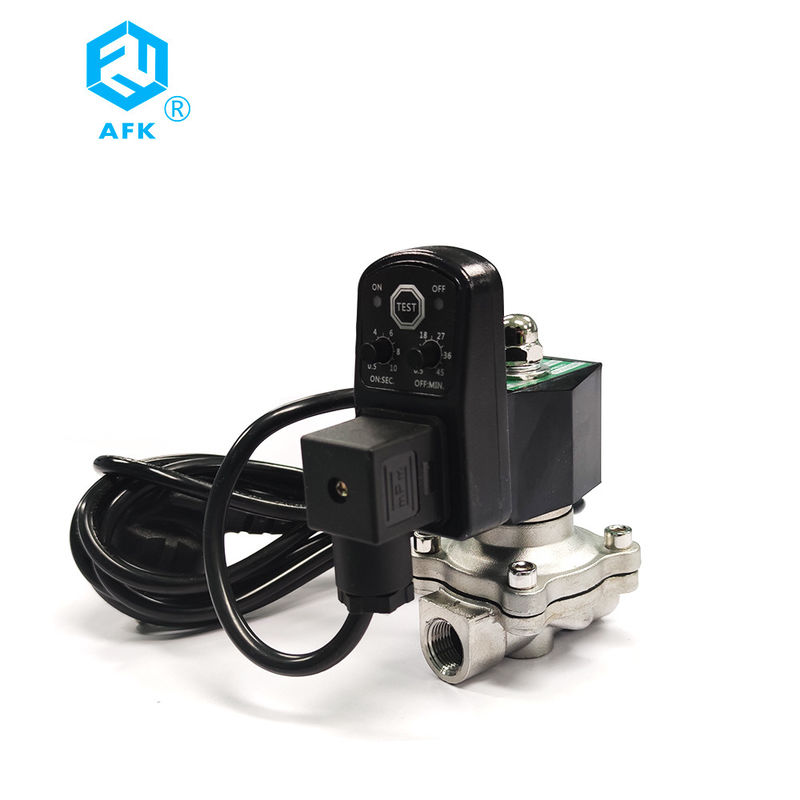

Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: 2W-160-10B
Payment & Shipping Terms
Minimum Order Quantity: 1~10
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC
Material: |
Stainless Steel |
Product Name: |
Solenoid Valve |
Port Size: |
3/8" , 16mm |
Standard Volt: |
AC110V , AC220V , DC24V |
Place Of Origin: |
China |
Authenticaion: |
CE |
Media: |
Water,Air |
Temperature Of Media: |
Normal Temperature ,Low Temperature |
Valve Type: |
2way |
Cv: |
4.8 |
Material: |
Stainless Steel |
Product Name: |
Solenoid Valve |
Port Size: |
3/8" , 16mm |
Standard Volt: |
AC110V , AC220V , DC24V |
Place Of Origin: |
China |
Authenticaion: |
CE |
Media: |
Water,Air |
Temperature Of Media: |
Normal Temperature ,Low Temperature |
Valve Type: |
2way |
Cv: |
4.8 |
Product Features
| Stainless steel piston, sensitive action, long service life of 100W times; autocratic coil is not easy to burn; zero leakage; a wide range of applicable. |
| Working Principle | Economy |
|
A: The normally closed type: when the coil is energized, the main spool by medium pressure valve closed coil is de-energized, open. B: The normally open type: when the coil is energized, the valve is closed; the coil is cut off, and the main valve core is opened by the medium pressure differential force. |
There are a lot of solenoid valve can be generic,but in the foundation to meet the above three points should be the most economical product. |
| Reliability | |
| Solenoid valve is divided into normal open and normal close,general selection of normal close,power on is open . power off is close ,but when the open time is very and close time is very short ,should select normal open . Life test,the factory belongs to the type test .there is no professional standard for solenoid valve in our country ,S0 please be caution when use solenoid valve manufactures. Action is very short an high frequencies is generally used direct-acting,in large caliber optional fast. |
|
Structure
Structure Parameters
| Model NO. | 2W-1 60-10B | 2W-160-15B | 2W-200-20B | 2W-250-25B | 2W-320-32B | 2W-400-40B | 2W-500-50B |
| Pipe Size | 3/8” | 1/2” | 3/4" | 1” | 1 1/4" | 11/2" | 2” |
| orifice size | 16mm | 16mm | 20mm | 25mm | 32mm | 40mm | 50mm . |
| CV value | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| fluid | Air water oil,the neutral gasliquid | ||||||
| service voltage | AC380V AC220V AC110V AC24V DC24V DC12V allow 士10% | ||||||
| operating | direct acting | type | Normally Closed | ||||
| Body Material | stainless steel | viscosity | Below 20CST | ||||
| working pressure | water,air :0~ 10kgf/cm2 oil:0~7kgf/cm2 | ||||||
| Material of seal | standard: below 80Cfluid temperature use NBR, below 120Cuse EPDM. VITON resistance to weak acid and weak base or below 150C | ||||||
| 2W | 160 | 10 | B | H | AC220V |
| 2/2 way direct- acting solenoid valve |
Orifice size | port size | Material : stainless steel |
Blank:NBR H:High te mperature |
Standard voltage DC: 24V ECT |
